RACD03-350 | RECOM
LED power supply
Unit Price (€ / pc.)
11.7691 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
11.77 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7691 €
5 pcs.
10.7338 €
10 pcs.
10.4363 €
*incl. VAT plus shipping costs
Subject to prior sale

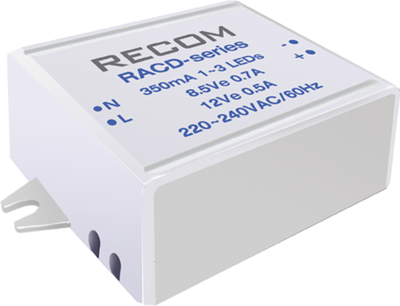

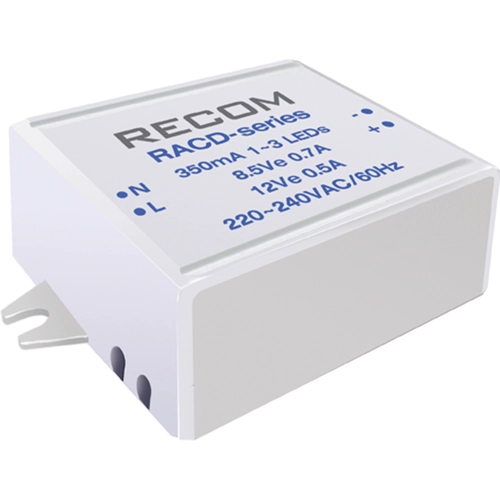

LED power adapters, 3.0 W, type Recom RACD03.
Encased, for constant current (CC) or constant voltage (CV) mode; Certifications: UL-8750, EN-61347, ENEC. Input voltage range: 90 to 264 VAC, 120 to 370 VDC. Leakage current: 0.2 mA. Residual ripple: 0.1 App. Insulation voltage: 3.0 kV. Degree of protection: IP 66. Operating temperatures: –20 to +50 °C. Dimensions: 38.1 x 29.6 x 23.1 (without mounting flange).
Technical attributes (type, output CV/CC mode, efficiency): RACD03–350, 15 VDC, 0 to 350 mA/2.5 to 15 VDC, 350 mA, 72 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | LED power supply | |
| Power | 3 W | |
| Rated voltage | 15 V | |
| Rated current | 350 mA | |
| Assembly | screw mounting | |
| Colour | white | |
| Length | 52.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
