CMC-09 | RECOM

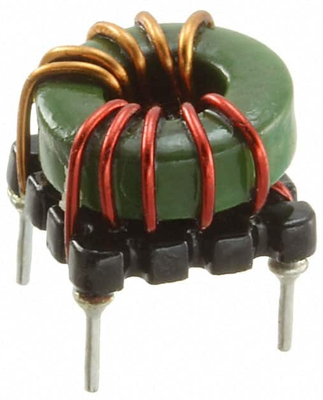

Common mode choke, open, 33.3 µH, 3.3 A, CMC-09
Order No.: 29C2606
EAN: 4099889001297
MPN:
CMC-09
30002129
Unit Price (€ / pc.)
8.5799 € *
Standard delivery time from the manufacturer is: 10 Weeks
Common mode choke, CMC-09, RECOM
The CMC-09 is a common mode choke, where both line and neutral windings are wound on a single core. When using a current compensated choke to decrease common mode noise, (the interference pattern or the unwanted noise) you want to have a high impedance at the unwanted frequencies to knock down that unwanted noise.
Applications
- DC/DC converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 3.3 A | |
| Width | 11 mm | |
| Height | 8.8 mm | |
| Length | 11 mm | |
| DC resistance | 10 mΩ | |
| Version | common mode choke | |
| Design | open | |
| Inductance | 33.3 µH |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
