CMC-07 | RECOM

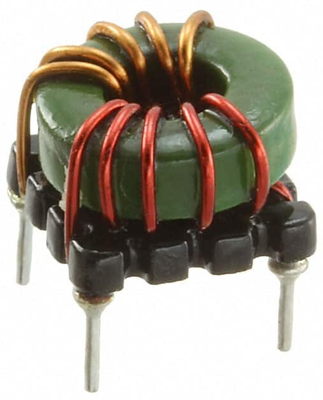

Common mode choke, open, 145 µH, 5.2 A, CMC-07
Order No.: 29C2604
EAN: 4099889001273
MPN:
CMC-07
30001110
Unit Price (€ / pc.)
8.5799 € *
Standard delivery time from the manufacturer is: 10 Weeks
Common mode choke, CMC-07, RECOM
The CMC-07 is a common mode choke, where both line and neutral windings are wound on a single core. When using a current compensated choke to decrease common mode noise, (the interference pattern or the unwanted noise) you want to have a high impedance at the unwanted frequencies to knock down that unwanted noise.
Applications
- DC/DC converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 8.8 mm | |
| Inductance | 145 µH | |
| Version | common mode choke | |
| DC resistance | 20 mΩ | |
| Width | 11 mm | |
| Design | open | |
| Length | 11 mm | |
| DC current | 5.2 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
