RYK-053.3S/H | RECOM
DC converter, 5 VDC, 1 W, 1 output, 3.3 VDC, 75 % efficiency, RYK-053.3S/H
Unit Price (€ / pc.)
3.2368 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
3.24 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2368 €
10 pcs.
3.0940 €
50 pcs.
2.9512 €
100 pcs.
2.8679 €
*incl. VAT plus shipping costs
Subject to prior sale

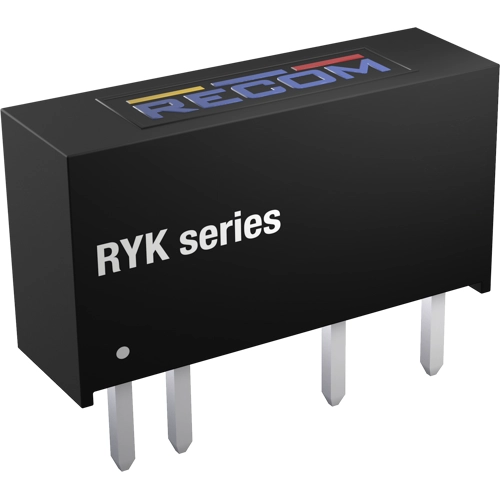

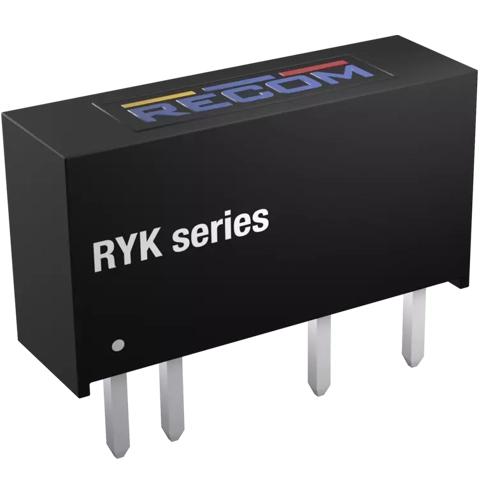

DC/DC converter, RYK-053.3S/H, RECOM
The RYK-053.3S/H DC/DC converter is typically used in cost-sensitive, general-purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with a built-in linear regulator to provide a regulated, load-independent output. The converter is equipped with 4kVdc isolation, an industrial operating temperature range of -40°C to +105°C without derating, and UL/EN certifications.
Features
- Low cost
- Efficiency up to 81%
- Post regulated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 303 mA | |
| Output voltage DC | 3.3 VDC | |
| Input voltage AC | 5 VDC | |
| Power | 1 W | |
| efficiency | 75 % | |
| Design | through hole | |
| Isolation voltage | 4 kV | |
| Length | 19.6 mm | |
| Width | 6 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
