RSH3-2405S/H2 | RECOM
DC converter, 18-36 VDC, 3 W, 1 output, 5 VDC, 80 % efficiency, RSH3-2405S/H2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
11.1622 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
11.16 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1622 €
10 pcs.
10.6505 €
50 pcs.
10.1864 €
100 pcs.
9.9008 €
*incl. VAT plus shipping costs
Subject to prior sale

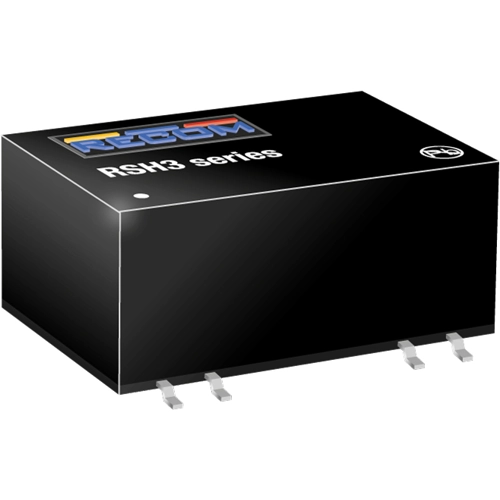

DC/DC converter, RSH3-2405S/H2, RECOM
High power density 3W SMD isolated DC/DC single and dual output converter. The RSH3 is available with three different input ranges and offers single or dual regulated output. There is no minimum load requirement. Standard isolation is 2kVDC/1min and a /H3 version with 3kVDC/1min is available. The operating temperature is from -40°C up to +81°C without derating. The DIP14 SMD pin-out is industry standard, and the converter comes equipped with ON/OFF control, short circuit protection, and over current protection, making it ideal for highly sophisticated industrial designs.
Features
- 4:1 wide input range3W power in compact SMD package
- Fully protected- OCP & SCP
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 600 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 18-36 VDC | |
| Power | 3 W | |
| efficiency | 80 % | |
| Design | surface mounting | |
| Isolation voltage | 2 kV | |
| Length | 18.9 mm | |
| Width | 17.2 mm | |
| Height | 8.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
