RS6-1205S | RECOM

DC converter, 9-18 VDC, 6 W, 1 output, 5 VDC, 86 % efficiency, RS6-1205S

Order No.: 33C1958
EAN: 4099891335045
MPN:
RS6-1205S
10018263
Series: RS6

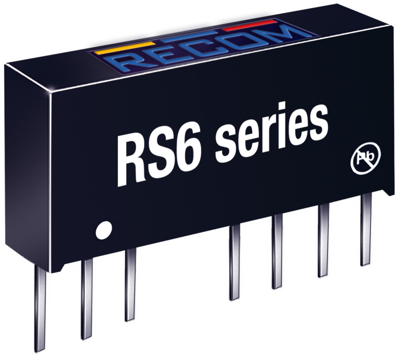

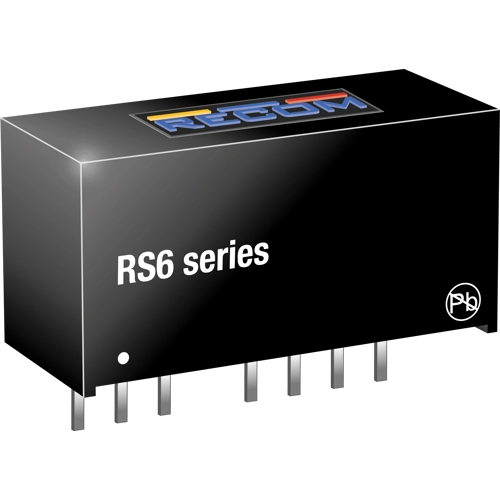

RS6-1205S RECOM DC/DC Converters
Image may differ
Unit Price (€ / pc.)
16.1364 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
355.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
22 pcs.
16.1364 €

DC/DC Converter, RS6-1205S, RECOM

The RS6 series offer very high power density (2.7W/cm³), wide input voltage range and an industrial operating temperature range of -40°C to +75°C without derating. High efficiency, tight regulation, 2kVDC isolation and remote on/off are just some of the characteristics of this advanced SIP8 6W converter which is ideal for high density power supply designs in demanding industrial applications.

Features

  • Highest power density in SIP Package
  • 1.6kVDC/1 minute Isolation
  • -40°C to +75°C Operating Temperature Range @ full load
  • Industry Standard Pinout
Technical specifications
Filter Property Value
Number of outputs 1
Output current 1.2 A
Output voltage DC 5 VDC
Input voltage AC 9-18 VDC
Power 6 W
efficiency 86 %
Design SIP8
Isolation voltage 1.6 kV
Length 21.8 mm
Width 9.2 mm
Height 11.1 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
