RS3E-2405S/H3 | RECOM
DC converter, 18-36 VDC, 3 W, 1 output, 5 VDC, 79 % efficiency, RS3E-2405S/H3
Unit Price (€ / pc.)
9.9365 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
9.94 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9365 €
10 pcs.
9.4724 €
50 pcs.
9.0440 €
100 pcs.
8.7941 €
*incl. VAT plus shipping costs
Subject to prior sale

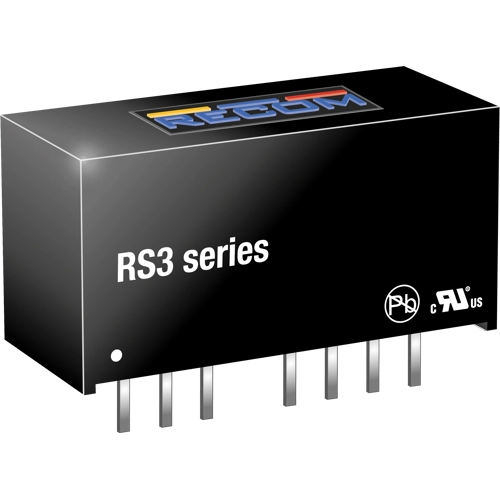

DC/DC converter, RS3E-2405S/H3, RECOM
The RS3E-2405S/H3 is a very high power density, wide input voltage range, high 3kVDC isolation, and industrial operating temperature range of -40°C to +70°C without derating. High efficiency, tight regulation, and remote on/off control are just some of the characteristics of this advanced, low-cost, SIP8, 3W converter. It is ideal for highly sophisticated, high-density power supply designs in demanding industrial applications.
Features
- 2:1 wide input range
- Industry standard pinout (SIP8)
- Low cost
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 600 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 18-36 VDC | |
| Power | 3 W | |
| efficiency | 79 % | |
| Design | through hole | |
| Isolation voltage | 3 kV | |
| Length | 21.8 mm | |
| Width | 9.2 mm | |
| Height | 11.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
