RPY-1.5Q-CT | RECOM
DC converter, 4-36 VDC, 7.5 W, 1 output, 0.8-34.8 VDC, 95 % efficiency, RPY-1.5Q-CT
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.1991 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
8.20 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1991 €
10 pcs.
7.3780 €
*incl. VAT plus shipping costs
Subject to prior sale

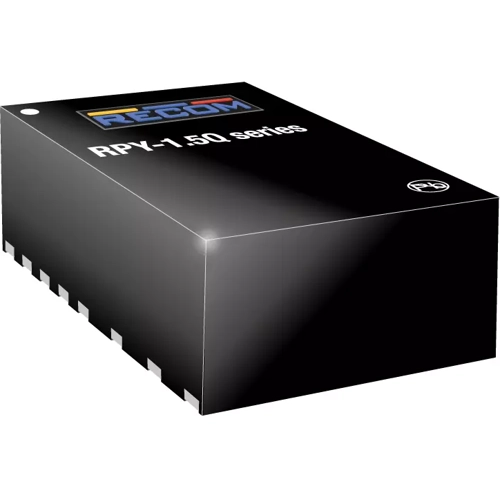

Buck regulator, RPY-1.5Q-CT, RECOM
The RPY-1.5Q-CT is an automotive grade constant current source buck regulator designed for driving high power LEDs. The integrated inductor means that a complete LED driver can be realized in a compact 3 mm x 5 mm x 1.6 mm thermally-enhanced QFN package with a maximum current output of up to 1500 mA set with an external sense resistor. The output is fully protected against continuous short-circuits, input undervoltage, output overcurrent, or over-temperature conditions. A fault indicator flags thermal shutdown or LED open/short circuit conditions.
Features
- AEC-Q100 qualified constant current power module with integrated shielded inductor
- Enable, fault, thermal shutdown & soft start function
Applications
- Dimmable LED lighting
- IR LED illumination for drones and robotic camera systems
- Precision high current CC sources for test and measurement use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1.5 A | |
| Output voltage DC | 0.8-34.8 VDC | |
| Input voltage AC | 4-36 VDC | |
| Power | 7.5 W | |
| efficiency | 95 % | |
| Design | QFN-17 | |
| Length | 5 mm | |
| Width | 3 mm | |
| Height | 1.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Electrical equipment take-back |  |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
