RPL-1.0-CT | RECOM
DC converter, 3-22 VDC, 5 W, 1 output, 0.6-12 VDC, 84 % efficiency, RPL-1.0-CT
Unit Price (€ / pc.)
3.0821 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
3.08 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0821 €
10 pcs.
2.9393 €
50 pcs.
2.8084 €
100 pcs.
2.7370 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converter, RPL-1.0-CT, RECOM

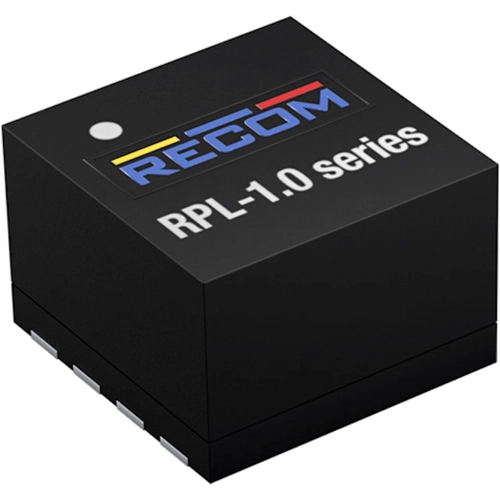

The RPL-1.0-CT is a synchronous buck converter with an integrated inductor in a tiny 3mm x 3mm x 2mm thermally-enhanced LGA package. The input range is from 3.0 to 22VDC, allowing a 3.3V, 5V, or 12V supply rail to be used. The output voltage can be set with two resistors in the range from 0.6V up to 12V. The output current is up to 1A and is fully protected against continuous short-circuits, output overcurrent, or over-temperature faults. Its high current and small size make the RPL-1.0 ideal for an imaging system, a distributed power architecture, and portable battery-powered equipment in telecom as well as an industrial application.
Features
- Pot-core transformer - separated windings
- Optional continuous short circuit protection
- Efficiency up to 85%
- Suitable for IGBT applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1000 mA | |
| Output voltage DC | 0.6-12 VDC | |
| Input voltage AC | 3-22 VDC | |
| Power | 5 W | |
| efficiency | 84 % | |
| Design | surface mounting | |
| Length | 3 mm | |
| Width | 3 mm | |
| Height | 2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
