RPA60-2424SFW/P | RECOM
DC converter, 9-36 VDC, 60 W, 1 output, 24 VDC, 93 % efficiency, RPA60-2424SFW/P
Unit Price (€ / pc.)
73.3516 € *
Standard delivery time from the manufacturer is: 31 Weeks
Total Price:
73.35 € *
Price list
Quantity
Price per unit*
1 pcs.
73.3516 €
10 pcs.
69.0319 €
50 pcs.
61.7729 €
100 pcs.
60.2021 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converter, RPA60-2424SFW/P, RECOM

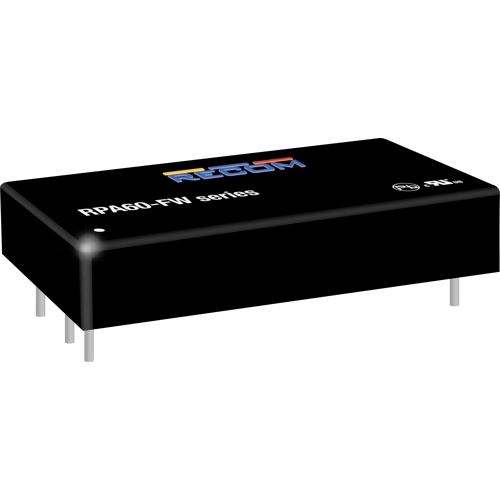

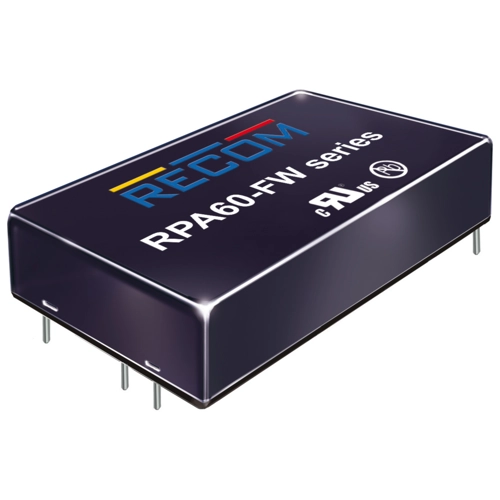

The RPA60-2424SFW/P is a high power density, wide input voltage range 60W DC/DC converter in an industry standard 2"x1" case size. Despite its small size, the RPA60-FW converter is a fully specified device with output currents up to 12Amps, up to 93% efficiency, no minimum load, 1600VDC isolation, tight regulation and low ripple/noise figures. The trimmable output is also fully protected against over-temperature, short circuits, overcurrent and overvoltage. The operating temperature range is from -40°C up to 46°C without derating. The converter is UL and EN50155 certified and will find many uses in railway and industrial applications where board space is at a premium.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 2500 mA | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 9-36 VDC | |
| Power | 60 W | |
| efficiency | 93 % | |
| Design | through hole | |
| Isolation voltage | 1.5 kV | |
| Length | 50.8 mm | |
| Width | 25.4 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
