DC converter, 9-36 VDC, 10 W, 1 output, 5 VDC, 80 % efficiency, RP10-2405SEW-HC
Unit Price (€ / pc.)
60.7257 € *
Standard delivery time from the manufacturer is: 10 Weeks

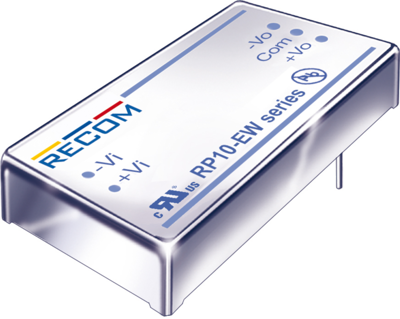

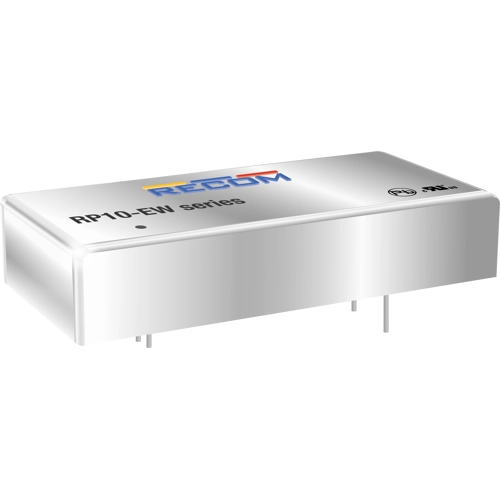

DC/DC Converter, RP10-2405SEW-HC, RECOM
The RP10-EW series wide input range DC/DC converters are certified to UL. This makes them ideal for all telecom and industrial applications where approved safety standards are required. The industry standard 2” x 1” package meets military standards for thermal shock and vibration tolerance and is available with an optional remote on/off control pin.
Features
- UL Certified
- Fixed Operating Frequency
- Six-Sided Continuous Shield
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 2 A | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 9-36 VDC | |
| Power | 10 W | |
| efficiency | 80 % | |
| Design | DIP6 | |
| Isolation voltage | 1.6 kV | |
| Length | 50.8 mm | |
| Width | 25.4 mm | |
| Height | 16.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
