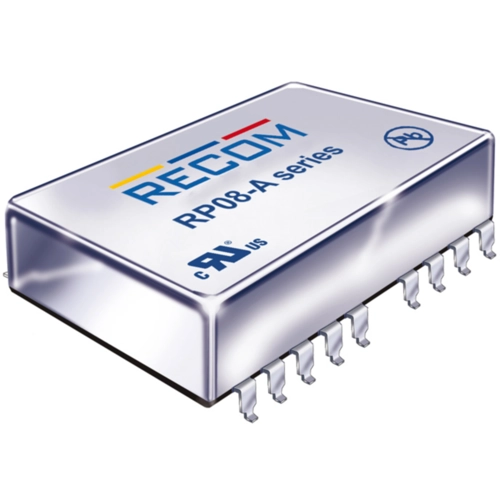

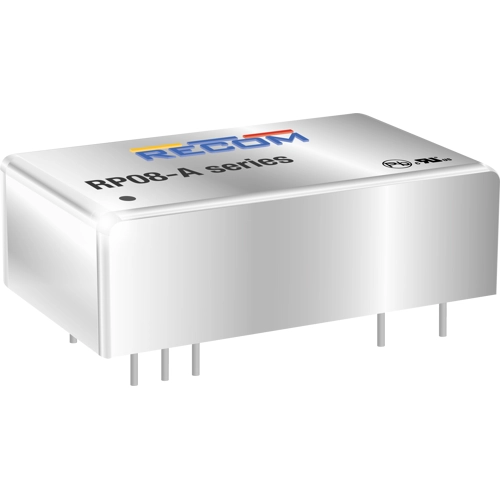

RP08-2415DA | RECOM
DC converter, 18-36 VDC, 8 W, 2 outputs, ±15 VDC, 85 % efficiency, RP08-2415DA
Unit Price (€ / pc.)
47.7190 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
47.72 € *
Price list
Quantity
Price per unit*
1 pcs.
47.7190 €
3 pcs.
40.1863 €
7 pcs.
39.1510 €
*incl. VAT plus shipping costs
Subject to prior sale
8W DC/DC-Converter 'POWERLINE' DIP24 1.6kV reg 2:1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 267 mA | |
| Output voltage DC | ±15 VDC | |
| Input voltage AC | 18-36 VDC | |
| Power | 8 W | |
| efficiency | 85 % | |
| Design | DIP24 | |
| Isolation voltage | 1.6 kV | |
| Length | 31.8 mm | |
| Width | 20.3 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
