ROF-78E5.0-0.5SMD-R | RECOM
DC converter, 9-36 VDC, 2.5 W, 1 output, 5 VDC, 87 % efficiency, ROF-78E5.0-0.5SMD-R
Unit Price (€ / pc.)
6.9615 € *
Available: 275 pcs.
Total Price:
6.96 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9615 €
10 pcs.
6.1285 €
100 pcs.
5.3669 €
250 pcs.
5.1646 €
1000 pcs.
4.8314 €
*incl. VAT plus shipping costs
Subject to prior sale

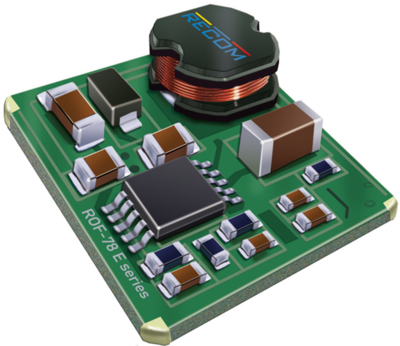

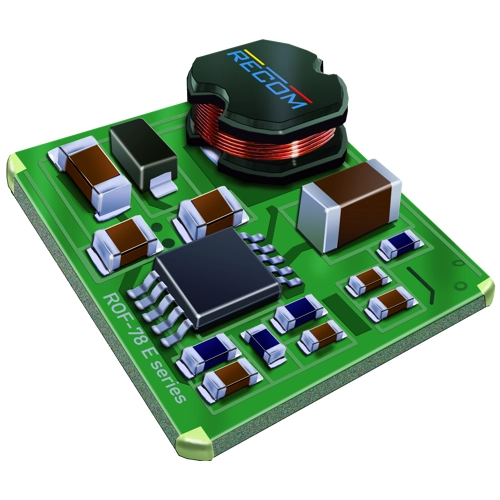

DC/DC Converter, ROF-78E5.0-0.5SMD-R, RECOM
Features
- Low Cost
- Short Circuit Protection
- Castellated Connections
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage AC | 9-36 VDC | |
| Height | 4.5 mm | |
| Output voltage DC | 5 VDC | |
| efficiency | 87 % | |
| Power | 2.5 W | |
| Output current | 500 mA | |
| Number of outputs | 1 | |
| Width | 12.5 mm | |
| Design | SMD | |
| Length | 13.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
