RO-2409S | RECOM
DC converter, 24 VDC, 1 W, 1 output, 9 VDC, 80 % efficiency, RO-2409S
Unit Price (€ / pc.)
6.5331 € *
Standard delivery time from the manufacturer is: 16 Weeks

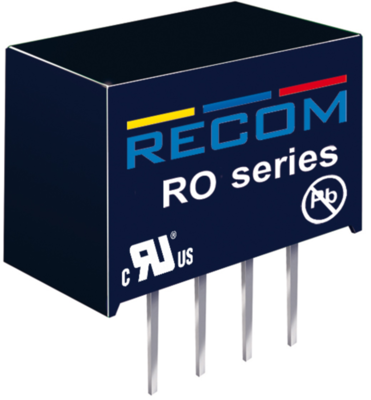

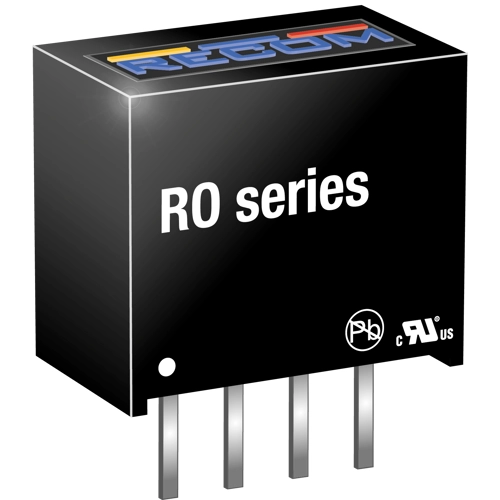

DC/DC Converter, RO-2409S, RECOM
The RO DC/DC converters are typically used in general purpose power isolation and voltage matching applications, and feature a full industrial operating temperature range of -40°C to +85°C without derating.
Features
- Industry Standard Pinout
- 1kVDC or 2kVDC Isolation
- UL94V-0 Package Materia
- Fully Encapsulated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 111 mA | |
| Output voltage DC | 9 VDC | |
| Input voltage AC | 24 VDC | |
| Power | 1 W | |
| efficiency | 80 % | |
| Design | SIP4 | |
| Isolation voltage | 1 kV | |
| Length | 11.5 mm | |
| Width | 6 mm | |
| Height | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
