RMOD4000-650-28SEW | RECOM
DC converter, 180-950 V, 4200 W, 1 output, 24-28 V, 94 % efficiency, RMOD4000-650-28SEW
NCNR (non cancelable / non returnable)
DC/DC Converter, RMOD4000-650-28SEW, RECOM

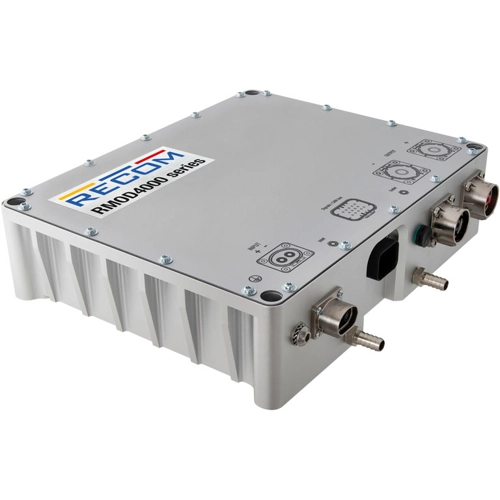

The RMOD4000-650-28SEW high-voltage DC/DC converter is designed to generate a low-voltage network (12/24 V) from a vehicle’s high-voltage traction battery. The unit is an extremely robust plug-and-play module that operates reliably even under the most adverse conditions. Thanks to its high efficiency, the unit is extremely compact and easy to implement via a CAN interface to the vehicle’s control network. The housing is waterproof and dustproof, and the device operates with either base plate cooling or water cooling. This solution is ideal for HV-battery-powered electric vehicles in on- and off-highway e-mobility applications such as material handling, forklift trucks, golf cars, AGVs, loaders, construction vehicles, airport equipment, people movers, special vehicles, transporters, tractors, and more.
Features
- High voltage DC/DC converter for E-Mobility
- High power density
- Excellent efficiency
- Liquid cooled
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 150 mA | |
| Output voltage DC | 24-28 V | |
| Input voltage AC | 180-950 V | |
| Power | 4200 W | |
| efficiency | 94 % | |
| Design | 12.44“ x 10“ | |
| Isolation voltage | 3.05 kV | |
| Length | 316 mm | |
| Width | 254 mm | |
| Height | 83 mm |
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TH |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
