RM-1205S | RECOM
DC converter, 12 VDC, 0.25 W, 1 output, 5 VDC, 72 % efficiency, RM-1205S
Unit Price (€ / pc.)
6.7473 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
6.75 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7473 €
10 pcs.
6.4260 €
50 pcs.
6.1523 €
100 pcs.
5.9857 €
*incl. VAT plus shipping costs
Subject to prior sale

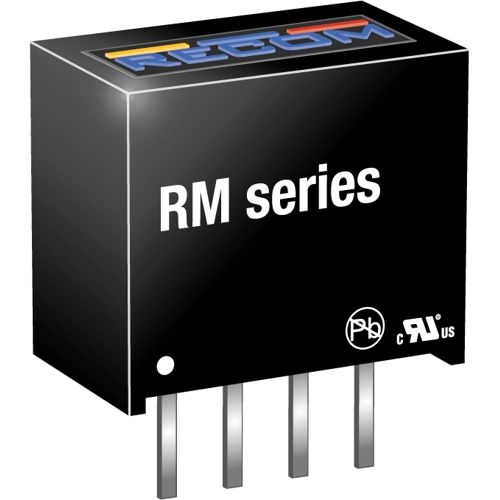

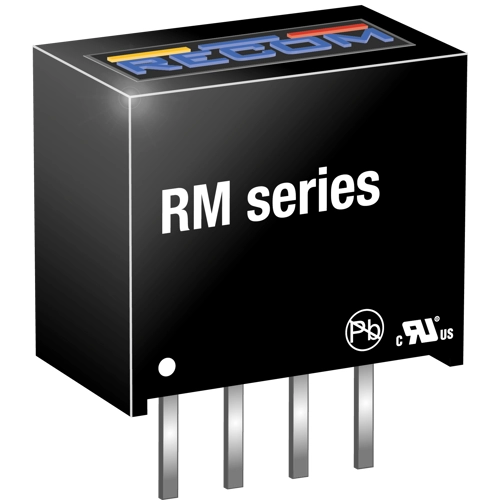

DC/DC converter, RM-1205S, RECOM
The RM-1205S converter has been designed for isolating or converting DC power rails with very light loads. Efficiency is typically 10% higher than a comparable 0.5W or 1W converter run at the same low load.
Features
- Single output rail
- Industry standard pinout
- High efficiency for low power applications
- Optional continuous short circuit protection
- Fully encapsulated
- Efficiency up to 76%
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 50 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 12 VDC | |
| Power | 0.25 W | |
| efficiency | 72 % | |
| Design | through hole | |
| Isolation voltage | 1 kV | |
| Length | 11.5 mm | |
| Width | 6 mm | |
| Height | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
