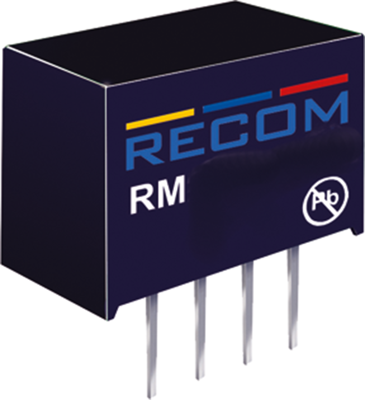

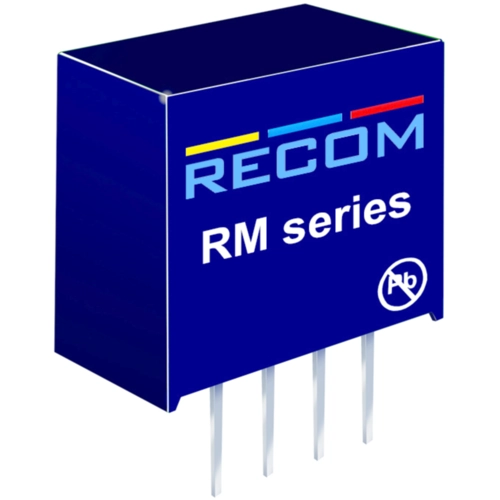

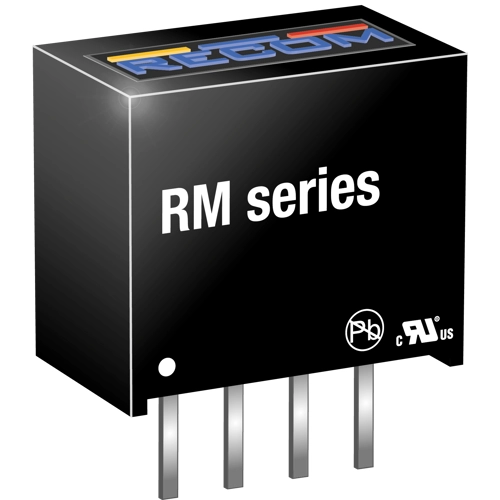

RM-0505S | RECOM
DC converter, 5 VDC, 0.25 W, 1 output, 5 VDC, 72 % efficiency, RM-0505S
Order No.: 33C492
EAN: 4099891335311
MPN:
RM-0505S
10000534
Unit Price (€ / pc.)
7.4494 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
DC/DC converters, 0.25 W, type Recom RM.
0.25 W DC/DC converter, SIP4 package, one output, Insulation voltage: 1.0 kV. Input voltage range: ±10 %. Output voltage tolerance: ±5.0 %. Residual ripple: 50 mVpp. Insulation resistance: 10 Gohm. Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage, output voltage, output current): RM-0505S, 5.0 V, 5.0 V, 50 mA
Technical specifications
| Number of outputs | 1 | |
| Output current | 50 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 5 VDC | |
| Power | 0.25 W | |
| efficiency | 72 % | |

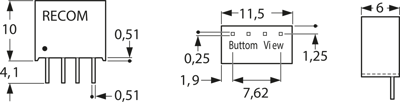

| Design | SIP4 | |
| Isolation voltage | 1 kV | |
| Length | 11.5 mm | |
| Width | 6 mm | |
| Height | 10 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
