RKE-0505S/H | RECOM

DC converter, 5 VDC, 1 W, 1 output, 5 VDC, 75 % efficiency, RKE-0505S/H

Order No.: 33C562
EAN: 4099891335472
MPN:
RKE-0505S/H
10016994
Series: RKE

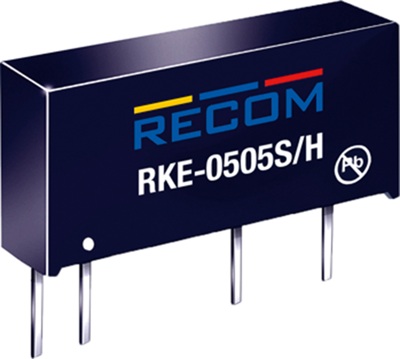

RKE-0505S/H RECOM DC/DC Converters Image 1

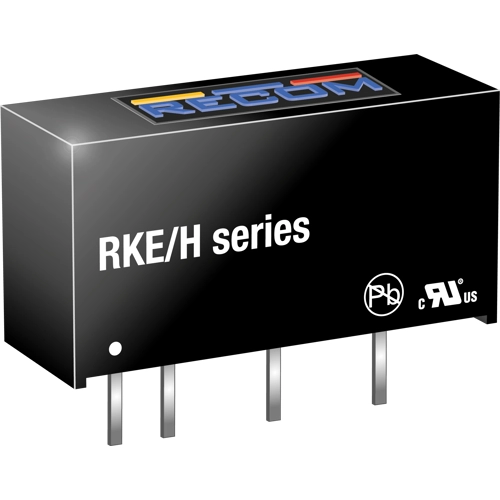

RKE-0505S/H RECOM DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
4.7243 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
118.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
4.7243 €

DC/DC converter, 1.0 W, type Recom RKE.

1.0 W DC/DC converter, in SIP7 package, one output; Insulation voltage: 3.75 kV/1.0 s. Input voltage range: ±10 %. Output voltage tolerance: ±5.0 %. Residual ripple: 100 mVpp. Insulation resistance: 1.0 Gohm. Operating temperatures: –40 to +85 °C.

Technical attributes (type, input voltage, output voltage, output current, efficiency): RKE-0505S, 5.0 V, 5.0 V, 200 mA, 70 %

Technical specifications
Filter Property Value
Number of outputs 1
Output current 200 mA
Output voltage DC 5 VDC
Input voltage AC 5 VDC
Power 1 W
efficiency 75 %
Design SIP7
Isolation voltage 4 kV
Length 19.6 mm
Width 7.05 mm
Height 10.2 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Original Packaging Bar with 25 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
