RK-0505S | RECOM
DC converter, 5 VDC, 1 W, 1 output, 5 VDC, 78 % efficiency, RK-0505S
Unit Price (€ / pc.)
8.5442 € *
Next delivery: 50 pcs. on 2026-03-03
Total Price:
8.54 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5442 €
10 pcs.
8.1634 €
50 pcs.
7.8064 €
100 pcs.
7.5803 €
*incl. VAT plus shipping costs
Subject to prior sale

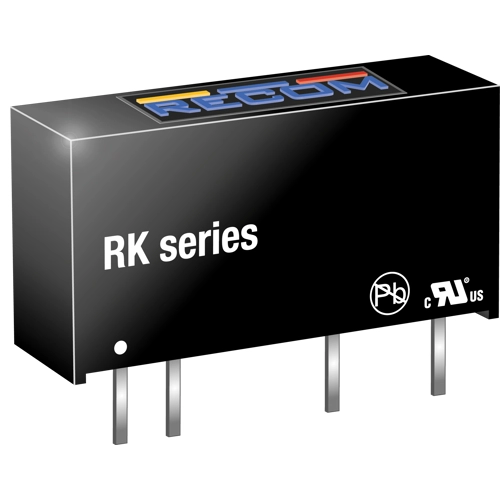

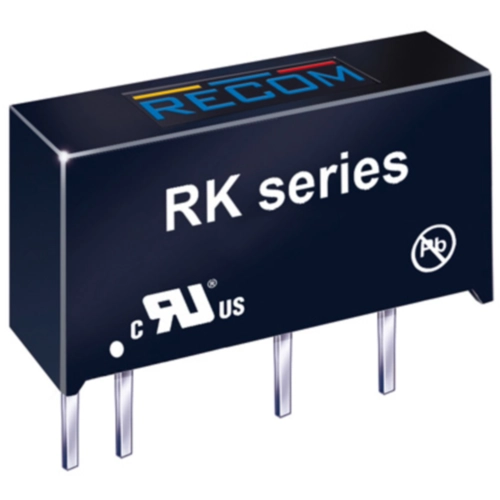

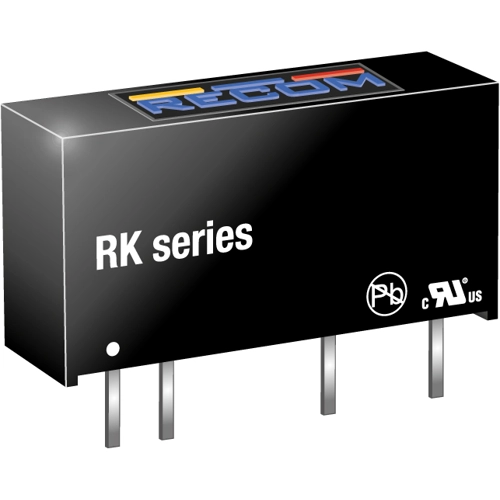

DC/DC converter, RK-0505S, RECOM
The RK-0505S converter complements RECOM’s industrial range of converters with very high isolation of 3kVDC/1s and 4kVDC/1s. The extended operating temperature range covering -40°C to +90°C is a standard feature. The converter is IEC/EN/UL60950-1 certified and is suitable for IGBT driver applications.
Features
- Optional continuous short circuit protection
- Suitable for IGBT applications
- Efficiency up to 84%
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 200 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 5 VDC | |
| Power | 1 W | |
| efficiency | 78 % | |
| Design | through hole | |
| Isolation voltage | 3 kV | |
| Length | 19.65 mm | |
| Width | 6 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
