REC30E-2412SZ | RECOM
DC converter, 9-36 VDC, 30 W, 1 output, 12 VDC, 90 % efficiency, REC30E-2412SZ
Unit Price (€ / pc.)
42.4354 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
42.44 € *
Price list
Quantity
Price per unit*
1 pcs.
42.4354 €
10 pcs.
39.9364 €
50 pcs.
35.7357 €
100 pcs.
34.8194 €
*incl. VAT plus shipping costs
Subject to prior sale
AC/DC LED power supply, REC30E-2412SZ, RECOM

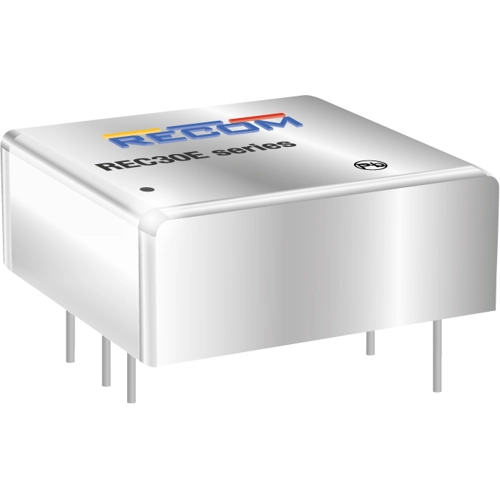

The REC30E-2412SZ is a high power density, wide input voltage range 30W DC/DC converter in an industry standard 1”x1” case size. Despite its small size, the REC30E-Z converter is a fully specified device with output currents up to 7 amps, over 90% efficiency, no minimum load, 2000VDC/1min isolation, tight regulation, and low ripple/noise figures. The output is also fully protected against over-temperature, short circuits, overcurrent, and overvoltage, and the single output version offers a ±10% trim range. This converter will find industrial applications where board space is at a premium.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 2500 mA | |
| Output voltage DC | 12 VDC | |
| Input voltage AC | 9-36 VDC | |
| Power | 30 W | |
| efficiency | 90 % | |
| Design | through hole | |
| Isolation voltage | 2 kV | |
| Length | 25.4 mm | |
| Width | 25.4 mm | |
| Height | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
