REC15E-2405SZ | RECOM
DC converter, 9-36 VDC, 15 W, 1 output, 5 VDC, 88 % efficiency, REC15E-2405SZ
Unit Price (€ / pc.)
28.1554 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
28.16 € *
Price list
Quantity
Price per unit*
1 pcs.
28.1554 €
10 pcs.
26.8583 €
50 pcs.
25.6683 €
100 pcs.
24.9424 €
*incl. VAT plus shipping costs
Subject to prior sale
AC/DC converter, REC15E-2405SZ, RECOM

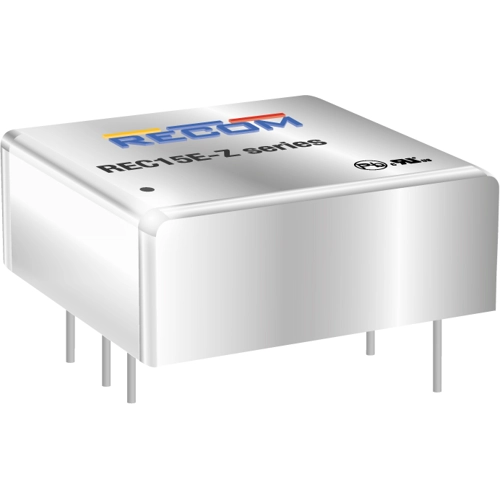

The REC15E-2405SZ is a 4:1 wide input voltage range 15W DC/DC converter in a 1"x1" case. Despite its low cost, the converter is a fully specified device with output currents up to 4 Amps, no minimum load, 1.6kVDC isolation, high efficiency and low ripple/noise figures. The input is protected against transients of up to 100V and features UVLO to allow the primary supply to start up safely. The single or dual output is continuously protected against short circuits and overload and can drive high capacitive loads. The REC15E-Z will find many uses in cost sensitive applications where board space is at a premium.
Features
- 4:1 wide input voltage range
- Continuous short circuit protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 3000 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 9-36 VDC | |
| Power | 15 W | |
| efficiency | 88 % | |
| Design | through hole | |
| Isolation voltage | 2 kV | |
| Length | 25.4 mm | |
| Width | 25.4 mm | |
| Height | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
