RCDE-48-1.05 | RECOM
LED power supply, 6-60 VDC, 54.6 W, 1 output, 3-52 VDC, 97 % efficiency, RCDE-48-1.05
Unit Price (€ / pc.)
7.9254 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
7.93 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9254 €
10 pcs.
7.5565 €
50 pcs.
6.9377 €
100 pcs.
6.4974 €
*incl. VAT plus shipping costs
Subject to prior sale

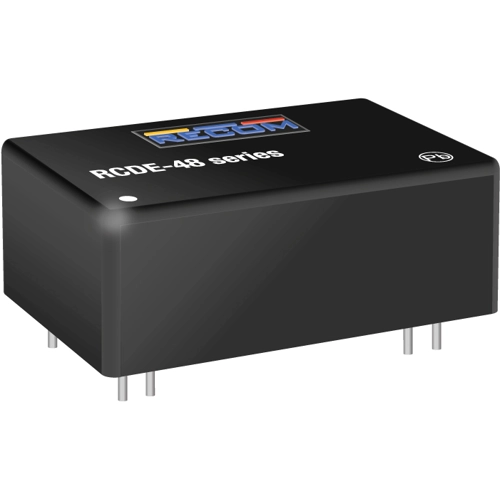

DC/DC converter, RCDE-48-1.05, RECOM
The RCDE-48-1.05 is a step-down constant current source designed for driving high-power LED applications from 12V, 24V, or 48V nominal input voltages. Standard output currents available are 350mA, 700mA, or 1050mA. The input voltage range is from 6V up to 60VDC with UVLO. This high-efficiency buck driver features digital PWM and/or analogue voltage dimming control, which can be controlled by 3.3V logic. The dimming input can also be used as a CTRL pin.
Features
- Low cost buck LED driver
- Digital PWM and analogue voltage dimming
- No internal E-Caps
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1050 mA | |
| Output voltage DC | 3-52 VDC | |
| Input voltage AC | 6-60 VDC | |
| Power | 54.6 W | |
| efficiency | 97 % | |
| Design | through hole | |
| Length | 32.1 mm | |
| Width | 20.6 mm | |
| Height | 12.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
