RBBA3000-50 | RECOM
DC converter, 9-60 VDC, 3000 W, 1 output, 0-60 VDC, 96 % efficiency, RBBA3000-50
Unit Price (€ / pc.)
320.11 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
320.11 € *
Price list
Quantity
Price per unit*
1 pcs.
320.11 €
6 pcs.
303.45 €
12 pcs.
287.98 €
*incl. VAT plus shipping costs
Subject to prior sale

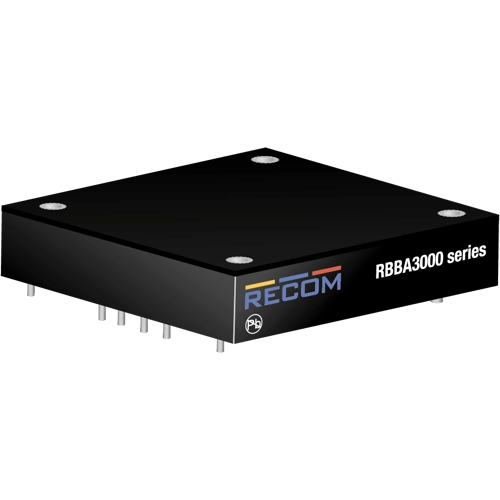

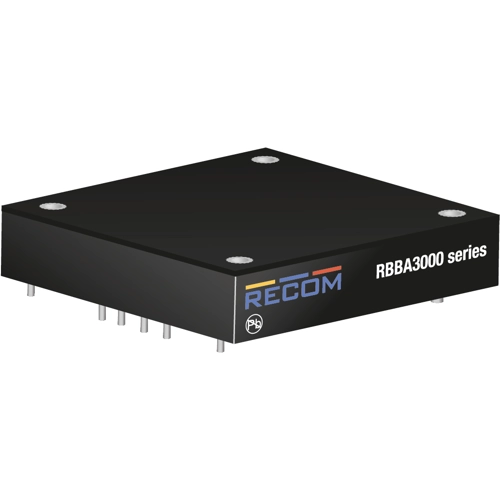

DC/DC converter, RBBA3000-50, RECOM
The RBBA3000-50 is a high-efficiency non-isolated buck/boost converter with up to 50A output current in a half-brick case. The input voltage range is from 9-60VDC, and the output voltage (0-60V) and current (0-50A) are independently set via fixed trim resistors or an external voltage. The Ishare pin has two functions: it can be used to monitor the load current in stand-alone applications, or it can be used to connect multiple modules in parallel to double the maximum output current to 100A. Typical applications include 48V to 24V or 12V to 24V battery power conversion, electric vehicles, battery voltage stabilizers, or high-power laboratory DC power supplies.
Features
- Non-isolated buck/boost converter
- Adjustable output voltage and current
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 50 A | |
| Output voltage DC | 0-60 VDC | |
| Input voltage AC | 9-60 VDC | |
| Power | 3000 W | |
| efficiency | 96 % | |
| Design | through hole | |
| Length | 60.6 mm | |
| Width | 63.2 mm | |
| Height | 13 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
