RB-2412D/P | RECOM
DC converter, 3.3-24 VDC, 1 W, 2 outputs, ±12 VDC, 82 % efficiency, RB-2412D/P
Unit Price (€ / pc.)
9.2820 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
9.28 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2820 €
10 pcs.
9.0321 €
50 pcs.
8.4966 €
100 pcs.
8.2110 €
*incl. VAT plus shipping costs
Subject to prior sale

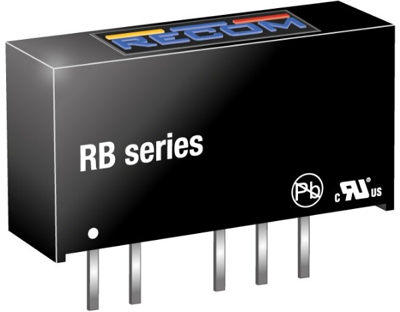

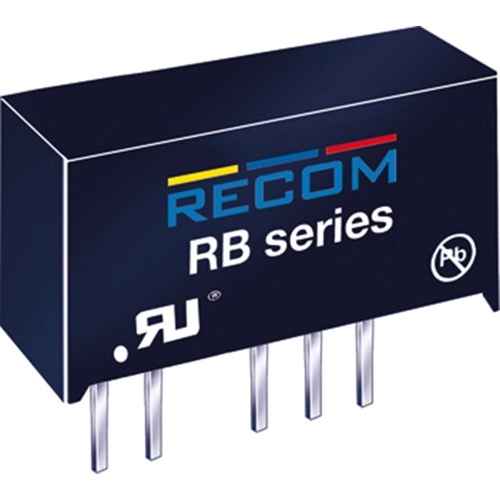

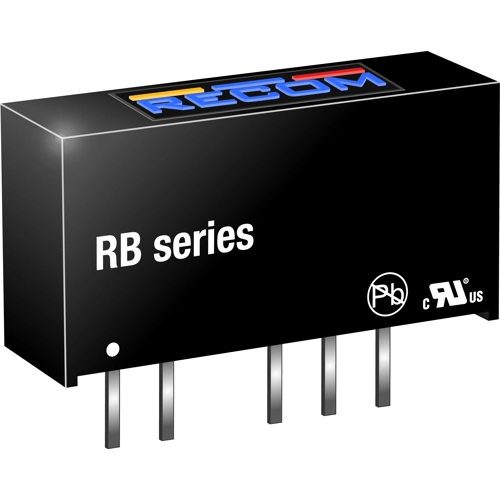

DC/DC converter, RB-2412D/P, RECOM
The DC/DC converter is designed for isolating or converting DC power rails in general purpose applications.
Features
- Low cost 1W converter
- Power sharing on dual output
- Optional continuous short circuit protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 42 mA | |
| Output voltage DC | ±12 VDC | |
| Input voltage AC | 3.3-24 VDC | |
| Power | 1 W | |
| efficiency | 82 % | |
| Design | SIP-7 | |
| Isolation voltage | 1 kV | |

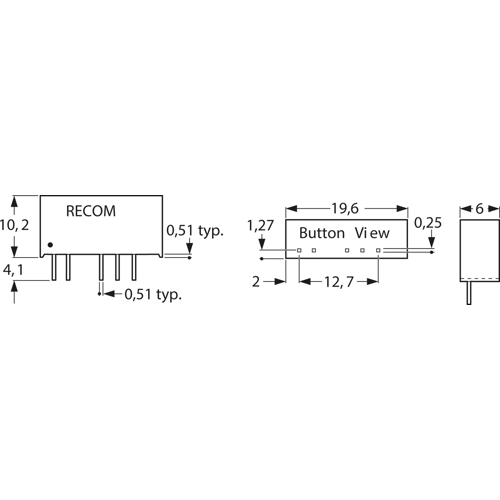

| Length | 19.6 mm | |
| Width | 6 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
