RB-0505S | RECOM
DC converter, 5 VDC, 1 W, 1 output, 5 VDC, 78 % efficiency, RB-0505S
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
6.1761 € *
Available: 25 pcs.
Total Price:
6.18 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1761 €
25 pcs.
5.8905 €
50 pcs.
5.5811 €
100 pcs.
5.2955 €
*incl. VAT plus shipping costs
Subject to prior sale

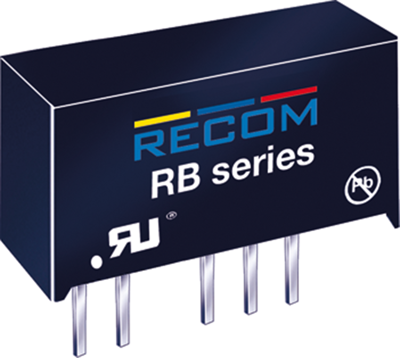

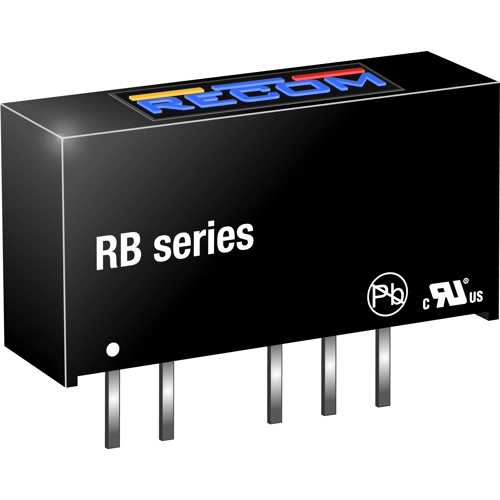

DC/DC converters, 1.0 W, type Recom RB.
1.0 W DC/DC converter, in SIP7 package. Insulation voltage: 1.0 kV. Input voltage range: ±10 %. Output voltage tolerance: ±5.0 %. Residual ripple: 100 mVpp (75 mVpp with 2 x OUT). Insulation resistance: 10 Gohm. Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage, number of outputs, output voltage, output current): RB-0505S, 5.0 V, 1 x OUT, 5.0 V, 200 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 200 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 5 VDC | |
| Power | 1 W | |
| efficiency | 78 % | |
| Design | SIP7 | |
| Isolation voltage | 1 kV | |
| Length | 19.6 mm | |
| Width | 6 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
