R3M-2405S/SMD | RECOM
DC converter, 24 VDC, 3 W, 1 output, 5 VDC, 80 % efficiency, R3M-2405S/SMD
Order No.: 01P8808
MPN:
R3M-2405S/SMD
10020125
Unit Price (€ / pc.)
25.2518 € *
Standard delivery time from the manufacturer is: 10 Weeks
Regulated converter, 10020125, RECOM

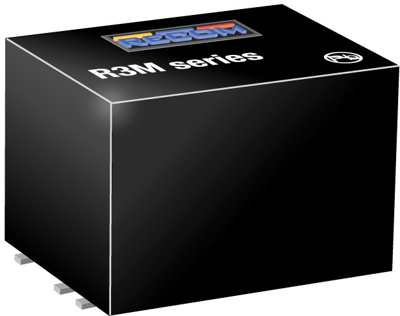

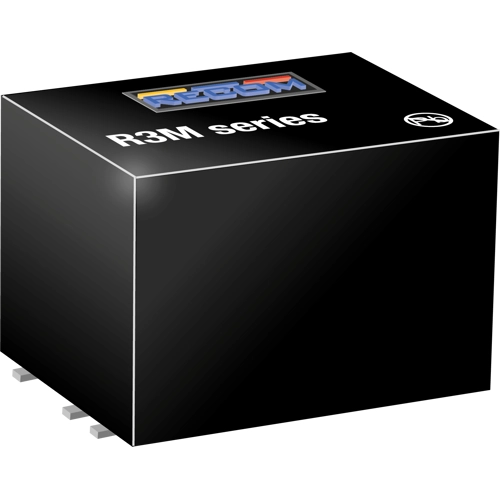

The 10020125 is an isolated 3W DC/DC converter in a compact SMD package available. Isolation is 1.6kVDC/1min, and the operating temperature is from -40°C up to +71°C without derating.
Features
- 4:1 Input voltage range
- Regulated output
- Continuous short circuit protected
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 600 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 24 VDC | |
| Power | 3 W | |
| efficiency | 80 % | |
| Design | SMD | |
| Isolation voltage | 1.6 kV | |
| Length | 13.2 mm | |
| Width | 9.1 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
