R24-100B | RECOM
DC converter, 21-27 VDC, 5 W, 1 output, 56-135 VDC, 84 % efficiency, R24-100B
Order No.: 28C8101
EAN: 4099891301873
MPN:
R24-100B
81000006
Unit Price (€ / pc.)
49.0756 € *
Standard delivery time from the manufacturer is: 10 Weeks

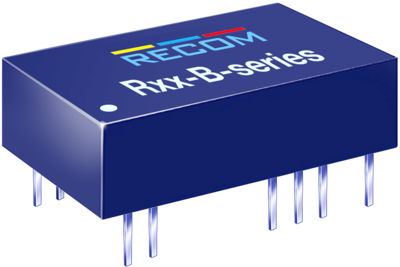

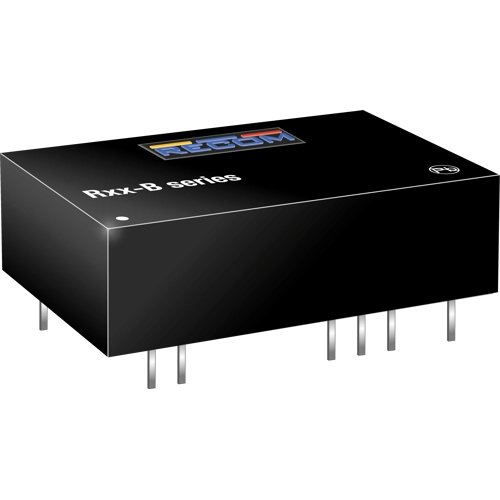

DC/DC Converter, R24-100B, RECOM
Features
- High Output Voltage DIP24 converter
- Remote Voltage Programming by External Voltage or Resistance
- Continuous Short Circuit Protection
- Ambient Temperature up to +85°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 50 mA | |
| Output voltage DC | 56-135 VDC | |
| Input voltage AC | 21-27 VDC | |
| Power | 5 W | |
| efficiency | 84 % | |
| Design | DIP24 | |
| Isolation voltage | 3 kV | |
| Length | 31.8 mm | |
| Width | 20.3 mm | |
| Height | 9.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
