R1SX-0505-R | RECOM
1W DC/DC-Converter 'ECONOLINE' SMD OF 1kV unreg
Unit Price (€ / pc.)
3.8318 € *
Standard delivery time from the manufacturer is: 4 Weeks

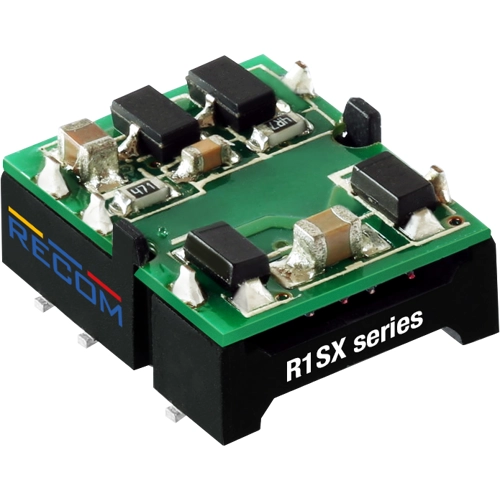

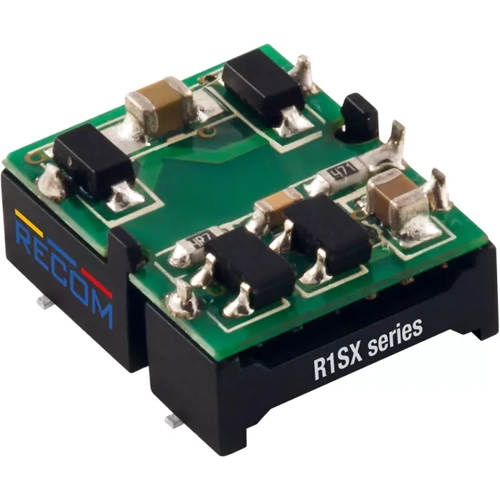

DC/DC converter, R1SX-0505-R, RECOM
Low cost, low profile, open-frame 1 W SMD isolated DC/DC single output converter. The R1SX features a 5 V input and offers a single unregulated 5 V output. There is no minimum load requirement and the quiescent consumption is less than 150 mW. Standard isolation is 1 kVDC/1 s. The operating temperature is from -40 °C up to +100 °C without derating. The converter is fully certified to IEC/EN/UL62368 and IEC/EN/UL60950 and is 10/10 RoHS-conform. Class A EMC conformity requires only an input capacitor, and a simple low-cost LC filter is all that is needed for Class B EMC. Standard packaging is tape and reel.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 200 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 5 VDC | |
| Power | 1 W | |
| efficiency | 78 % | |
| Design | surface mounting | |
| Isolation voltage | 1 kV | |
| Length | 12.75 mm | |
| Width | 11.1 mm | |
| Height | 5.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
