R1SE-0505 | RECOM
1W DC/DC-Converter 'ECONOLINE' SMD 1kV unreg
Unit Price (€ / pc.)
4.0460 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0460 €
5 pcs.
3.9151 €
10 pcs.
3.7366 €
50 pcs.
3.5581 €
100 pcs.
3.4748 €
*incl. VAT plus shipping costs
Subject to prior sale

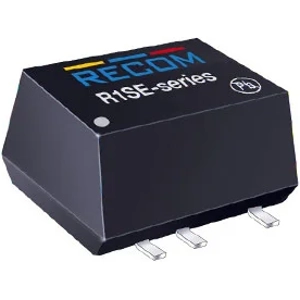

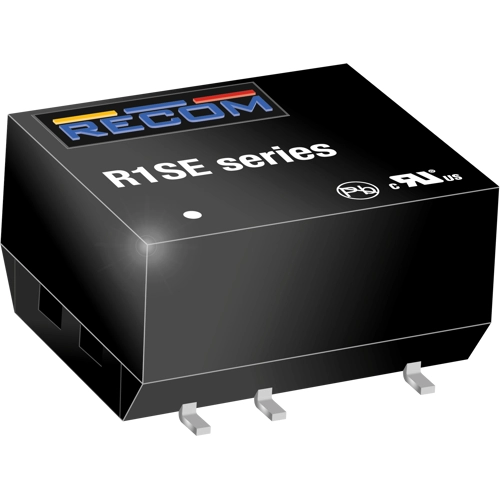

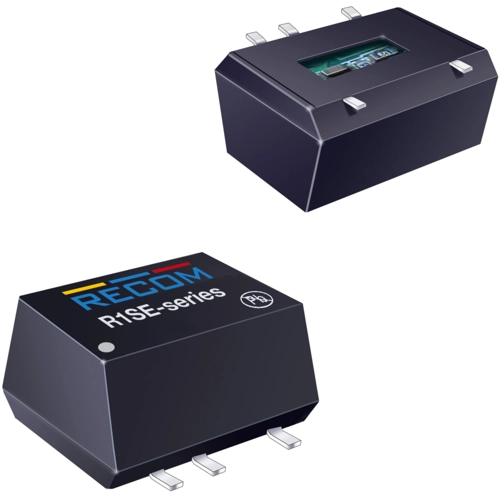

DC/DC converter, R1SE-0505, RECOM
The R1SE-0505 is a 1 W unregulated DC/DC converter that is lower cost than equivalent converters. The benefits of high volume production and semi-automatic assembly allow for a lower selling price without sacrificing our high quality standards. It is UL certified for safety, offers reasonable efficiency and an operating temperature range of -40 °C to +85 °C.
Features
- Efficiency up to 75%
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 200 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 4.5-5.5 VDC | |
| Power | 1 W | |
| efficiency | 75 % | |
| Design | surface mounting | |
| Isolation voltage | 1 kV | |
| Length | 12.75 mm | |
| Width | 10.7 mm | |
| Height | 7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
