R1M-2405S/SMD | RECOM

DC converter, 24 VDC, 1 W, 1 output, 5 VDC, 79 % efficiency, R1M-2405S/SMD

Order No.: 01P8798
MPN:
R1M-2405S/SMD
10020044
R1M-2405S/SMD RECOM DC/DC Converters

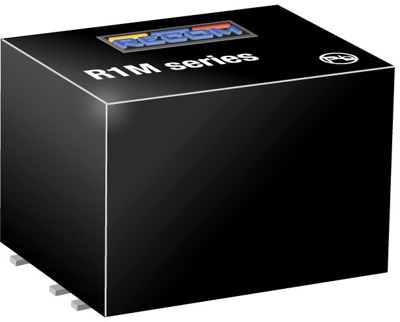

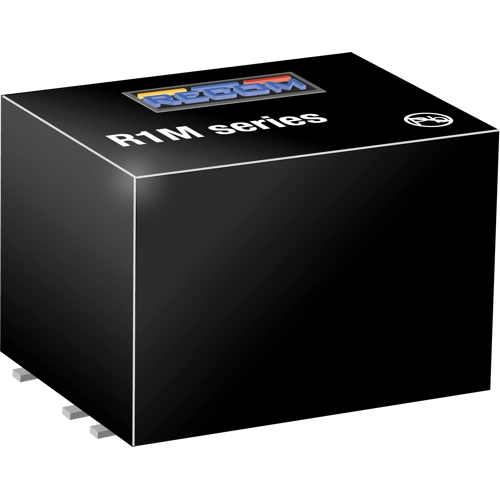

Image may differ
Unit Price (€ / pc.)
19.4089 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
388.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
19.4089 €

Regulated converter, 10020044, RECOM

The 10020044 is an isolated 1W DC/DC converter in a compact SMD package available. Isolation is 1.6kVDC/1min, and the operating temperature is from -40°C up to +90°C without derating.

Features

  • 4:1 Input voltage range
  • Regulated output
  • Continuous short circuit protected
Technical specifications
Number of outputs 1
Output current 200 mA
Output voltage DC 5 VDC
Input voltage AC 24 VDC
Power 1 W
efficiency 79 %
Design SMD
Isolation voltage 1.6 kV
Length 13.2 mm
Width 9.1 mm
Height 10.2 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
