R15-150B | RECOM
DC converter, 14-17 VDC, 5 W, 1 output, 92-200 VDC, 82 % efficiency, R15-150B
Unit Price (€ / pc.)
52.2053 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
52.21 € *
Price list
Quantity
Price per unit*
1 pcs.
52.2053 €
5 pcs.
49.0756 €
15 pcs.
47.1954 €
*incl. VAT plus shipping costs
Subject to prior sale

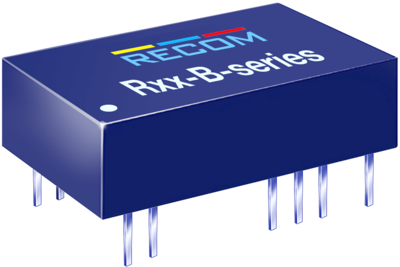

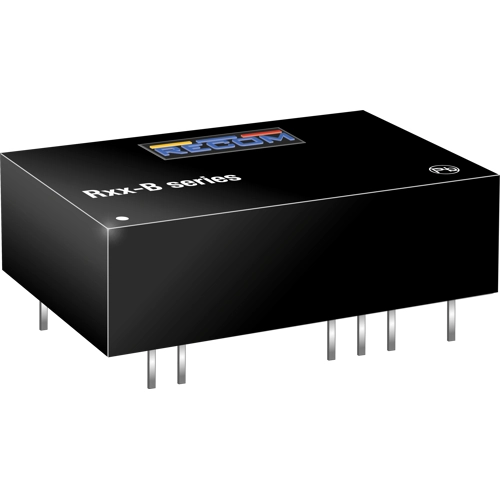

DC/DC Converter, R15-150B, RECOM
Features
- High Output Voltage DIP24 converter
- Remote Voltage Programming by External Voltage or Resistance
- Continuous Short Circuit Protection
- Ambient Temperature up to +85°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 50 mA | |
| Output voltage DC | 92-200 VDC | |
| Input voltage AC | 14-17 VDC | |
| Power | 5 W | |
| efficiency | 82 % | |
| Design | DIP24 | |
| Isolation voltage | 3 kV | |
| Length | 31.8 mm | |
| Width | 20.3 mm | |
| Height | 9.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
