R05P205S/P | RECOM
DC converter, 5 VDC, 2 W, 1 output, 5 VDC, 75 % efficiency, R05P205S/P
Order No.: 27C2933
EAN: 4099891301316
MPN:
R05P205S/P
10003737
Unit Price (€ / pc.)
18.1832 € *
Standard delivery time from the manufacturer is: 16 Weeks

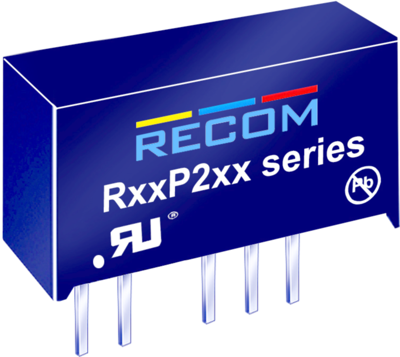

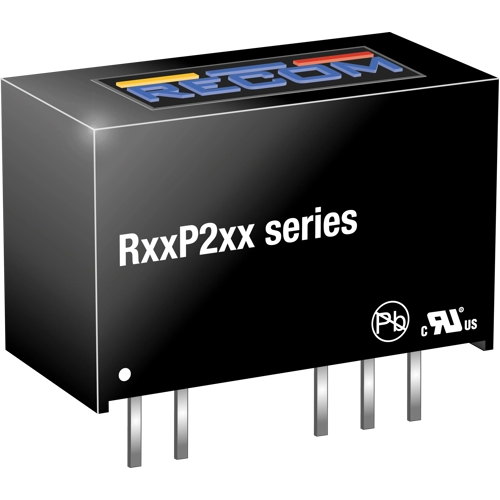

DC/DC Converter, R05P205S/P, RECOM
The RxxP2xxS_D Series of DC/DC Converters are certified to UL/CSA-60950 and UL/CSA 60601. This makes them ideal for medical and safety applications where approved isolation is required. The /X2 version has an input/output clearance of more than 9mm.
Features
- UL/CSA and EN Safety certified
- EN-60601 for Medical Applications
- Isolation 6.4kVDC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 400 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 5 VDC | |
| Power | 2 W | |
| efficiency | 75 % | |
| Design | SIP7 | |
| Isolation voltage | 3.2 kV | |
| Length | 19.7 mm | |
| Width | 9.8 mm | |
| Height | 12.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
