R05P05S | RECOM
DC converter, 5 VDC, 1 W, 1 output, 5 VDC, 75 % efficiency, R05P05S
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
15.0535 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
15.05 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0535 €
10 pcs.
13.7326 €
25 pcs.
13.3280 €
*incl. VAT plus shipping costs
Subject to prior sale

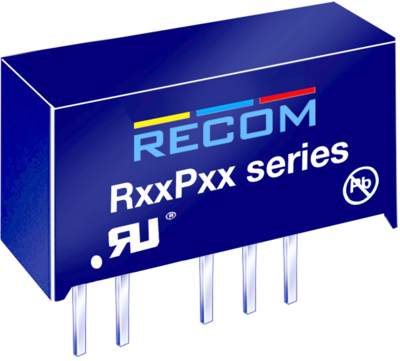

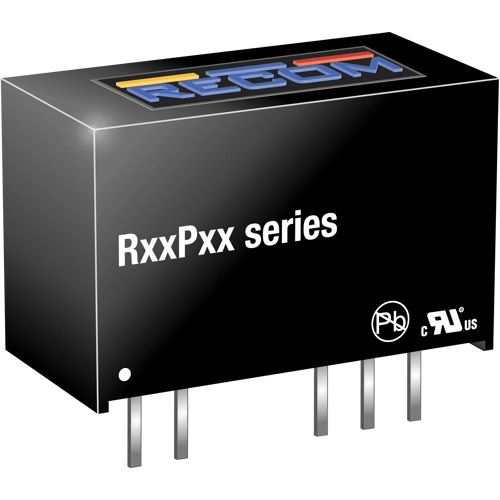

DC/DC Converter, R05P05S, RECOM
The RxxPxxS_D Series of DC/DC Converters are certified to UL/CSA. This makes them ideal for medical and safety applications where approved isolation is required.
Features
- UL/CSA and EN Safety certified
- Optional Continuous Short Circuit Protected
- Suitable for IGBT Applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 200 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 5 VDC | |
| Power | 1 W | |
| efficiency | 75 % | |
| Design | SIP7 | |
| Isolation voltage | 3.2 kV | |
| Length | 19.7 mm | |
| Width | 9.8 mm | |
| Height | 12.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
