R-78K12-2.0L | RECOM
2A DC/DC-Converter 'INNOLINE' SIP3 reg
Unit Price (€ / pc.)
5.3669 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
5.37 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3669 €
10 pcs.
5.1170 €
50 pcs.
4.8909 €
100 pcs.
4.7600 €
*incl. VAT plus shipping costs
Subject to prior sale

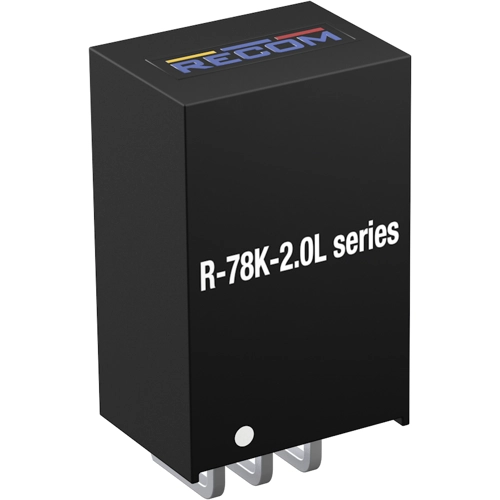

DC/DC converter, R-78K12-2.0L, RECOM
The R-78K12-2.0L is a switching regulator module that has been designed to offer all the advantages of a switching regulator (high efficiency, wide input range, accurate output voltage regulation) but with a low cost for production quantity. Due to the R-78K-2.0’s high efficiency of up to 96% no heat-sink is required, and operation from -40 to 90°C is possible without derating.
Features
- Non isolated DC/DC converter
- Undervoltage and short circuit protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 2000 mA | |
| Output voltage DC | 12 VDC | |
| Input voltage AC | 14-36 VDC | |
| Power | 24 W | |
| efficiency | 96 % | |
| Design | through hole | |
| Length | 11.5 mm | |
| Width | 8.5 mm | |
| Height | 17.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
