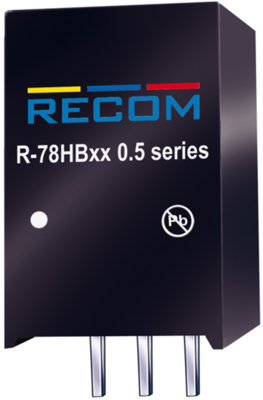

R-78HB24-0.3L | RECOM
DC converter, 36-72 VDC, 7.2 W, 1 output, 24 VDC, 96 % efficiency, R-78HB24-0.3L
Unit Price (€ / pc.)
19.4446 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
19.44 € *
Price list
Quantity
Price per unit*
1 pcs.
19.4446 €
20 pcs.
17.7072 €
42 pcs.
17.2193 €
*incl. VAT plus shipping costs
Subject to prior sale
Switching Regulator, R-78HB24-0.3L, RECOM
The R-78HBxx-Series high efficiency, high input voltage switching regulators are ideally suited to replace 78xx linear regulators and are pin compatible. The efficiency of up to 96% means that very little energy is wasted as heat so there is no need for any heat sinks with their additional space and mounting costs.
Features
- Pin-out compatible with LM78XX Linears
- Low ripple and noise
- Short circuit protection, Thermal shutdown
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 300 mA | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 36-72 VDC | |
| Power | 7.2 W | |
| efficiency | 96 % | |
| Design | SIP3 | |
| Length | 17.5 mm | |
| Width | 11.5 mm | |
| Height | 8.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
