R-78HB15-0.5L | RECOM
DC converter, 20-72 VDC, 7.5 W, 1 output, 15 VDC, 95 % efficiency, R-78HB15-0.5L
Order No.: 28C8264
EAN: 4099891301996
MPN:
R-78HB15-0.5L
80099189
Unit Price (€ / pc.)
18.8377 € *
Standard delivery time from the manufacturer is: 18 Weeks

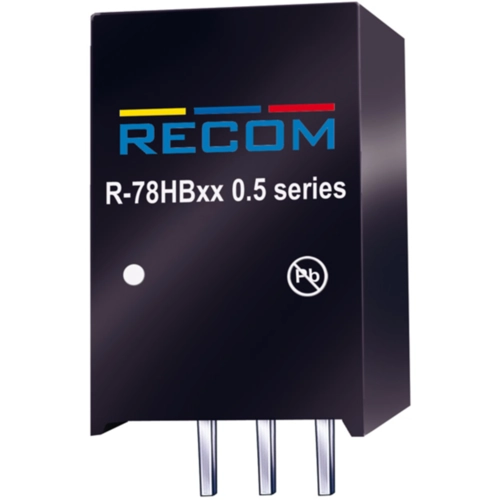

Switching Regulator, R-78HB15-0.5L, RECOM
The R-78HBxx-Series high efficiency, high input voltage switching regulators are ideally suited to replace 78xx linear regulators and are pin compatible. The efficiency of up to 96% means that very little energy is wasted as heat so there is no need for any heat sinks with their additional space and mounting costs.
Features
- Pin-out compatible with LM78XX Linears
- Low ripple and noise
- Short circuit protection, Thermal shutdown
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 8.5 mm | |
| Width | 11.5 mm | |
| Power | 7.5 W | |
| Length | 17.5 mm | |
| efficiency | 95 % | |
| Design | SIP3 | |
| Output current | 500 mA | |
| Output voltage DC | 15 VDC | |
| Number of outputs | 1 | |
| Input voltage AC | 20-72 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
