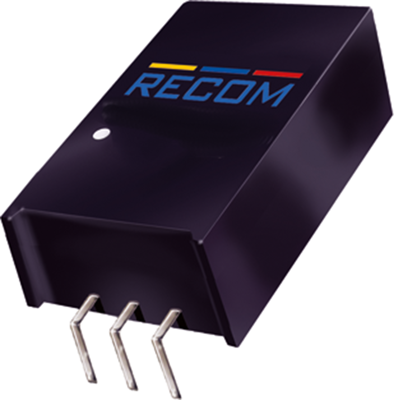

R-78HB12-0.5L | RECOM
DC converter, 17-72 VDC, 6 W, 1 output, 12 VDC, 94 % efficiency, R-78HB12-0.5L
Unit Price (€ / pc.)
18.0166 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
18.02 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0166 €
20 pcs.
16.4339 €
42 pcs.
15.9460 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converters, type Recom R-78HB..L.
Switching mode regulator, angled connections, pin compatible with LM78xx. Output voltage tolerance: typical/max. ±2.0/±3.0%. Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage range, output voltage, output current, efficiency at min./max. input voltage): R-78HB12-0.5L, 17 to 72 V, 12 V, 0.5 A, 94/89 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 500 mA | |
| Output voltage DC | 12 VDC | |
| Input voltage AC | 17-72 VDC | |
| Power | 6 W | |
| efficiency | 94 % | |
| Design | SIP3 | |

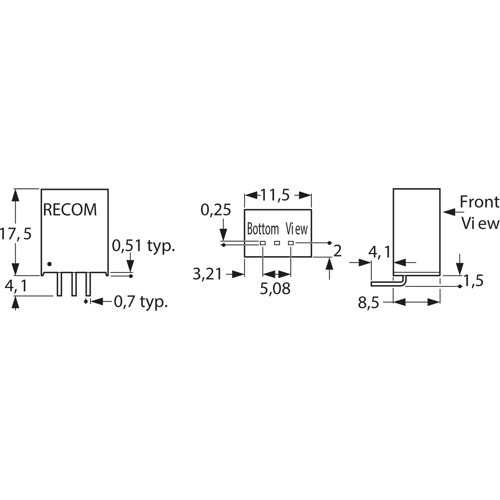

| Length | 17.5 mm | |
| Width | 11.5 mm | |
| Height | 8.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 42 pieces |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
