R-78HB12-0.5/W | RECOM
0.5A DC/DC-Converter 'INNOLINE' W SIP3 reg
Unit Price (€ / pc.)
19.8968 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
19.90 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8968 €
10 pcs.
18.9686 €
50 pcs.
18.1475 €
100 pcs.
17.6358 €
*incl. VAT plus shipping costs
Subject to prior sale

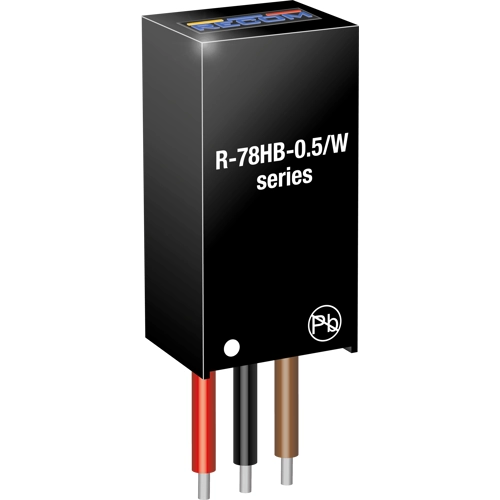

DC/DC converter, R-78HB12-0.5/W, RECOM
The R-78HB12-0.5/W is a high-efficiency, high input voltage switching regulator ideally suited to replace 78xx linear regulators. With efficiency of up to 93%, very little energy is wasted as heat, eliminating the need for heat sinks and their associated space and mounting costs. The wide input voltage range allows full utilization of standard 12V batteries, as well as COB LED drivers. No external components are required to create a complete regulated, short-circuit protected supply. A built-in protection diode allows high capacitive loads. Typical applications include auxiliary fan CV power supplies powered by CC LED drivers, as well as industrial, aerospace, and battery-powered applications.
Features
- High voltage input range, up to 50V
- Short circuit protection, thermal shutdown
- All-in-one solution, no external components required
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 500 mA | |
| Output voltage DC | 12 VDC | |
| Input voltage AC | 17-72 VDC | |
| Power | 6 W | |
| efficiency | 93 % | |
| Design | chassis mounting | |
| Length | 12.1 mm | |
| Width | 9.7 mm | |
| Height | 24 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
