R-78E5.0-1.0 | RECOM

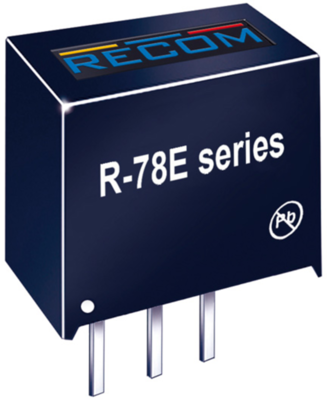

DC converter, 8-28 VDC, 5 W, 1 output, 5 VDC, 91 % efficiency, R-78E5.0-1.0
/500x500/dc-converter-8-28-vdc-5-w-1-output-5-vdc-91-efficiency-r-78e5-0-1-0.webp)
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.0341 € *
Available: 181 pcs.
Total Price:
4.03 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0341 €
20 pcs.
3.5581 €
42 pcs.
3.3201 €
84 pcs.
3.1535 €
*incl. VAT plus shipping costs
Subject to prior sale
Switching Regulator, R-78E5.0-1.0, RECOM
The R-78E series is a switching regulator module that has been designed to offer all the advantages of a switching regulator (high efficiency, wide input range, accurate output voltage regulation) but with a low cost for production quantities. Due to the R-78E’s high efficiency of up to 91% at an output voltage of 5V/1A at the output, no heat sink is required. The compact TO-220 compatible SIP3 package measures only 11.6 x 8.5 x 10.4 mm, so it saves precious board space.
Features
- Pin-out compatible with LM78XX Linear Regs
- Short Circuit Protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1 A | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 8-28 VDC | |
| Power | 5 W | |
| efficiency | 91 % | |
| Design | SIP3 | |
| Length | 11.6 mm | |
| Width | 8.5 mm | |
| Height | 10.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
