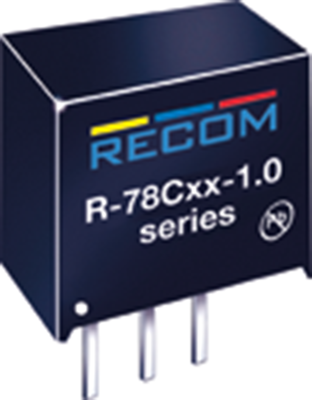

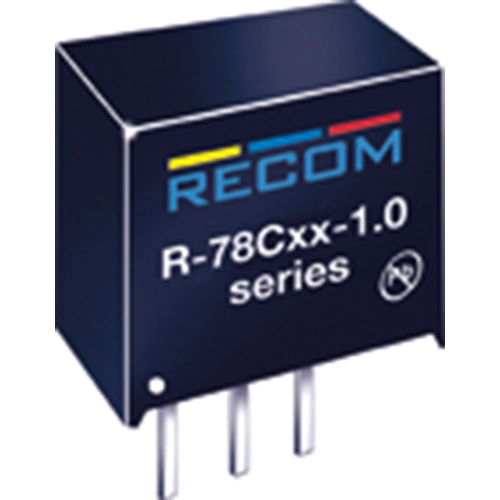

R-78C12-1.0 | RECOM
DC converter, 15-42 VDC, 12 W, 1 output, 12 VDC, 96 % efficiency, R-78C12-1.0
Unit Price (€ / pc.)
12.0666 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
506.80 € *
Price list
Quantity
Price per unit*
42 pcs.
12.0666 €
168 pcs.
11.3764 €
672 pcs.
10.6624 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converters, type Recom R-78C.
Switching mode regulator, pin compatible with LM78xx. Output voltage tolerance: typical/max. ±2.0/±3.0%. Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage range, output voltage, output current, efficiency at min./max. input voltage): R-78C12-1.0, 15 to 42 V, 12 V, 1.0 A, 96/92 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1 A | |
| Output voltage DC | 12 VDC | |
| Input voltage AC | 15-42 VDC | |
| Power | 12 W | |
| efficiency | 96 % | |
| Design | SIP3 | |
| Length | 11.6 mm | |
| Width | 8.5 mm | |
| Height | 10.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Bar with 42 pieces |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
