R-78B9.0-1.0 | RECOM
DC converter, 12-32 VDC, 9 W, 1 output, 9 VDC, 95 % efficiency, R-78B9.0-1.0
Order No.: 33C436
EAN: 4099891335182
MPN:
R-78B9.0-1.0
80099153
Unit Price (€ / pc.)
12.7925 € *
Available: 0 pcs.
Leadtime: 17 Weeks **

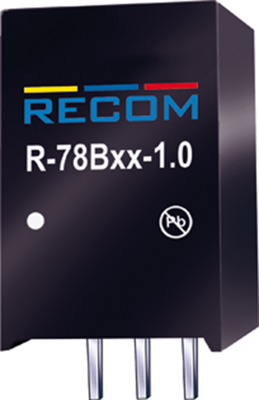

DC/DC converter, type Recom R-78B.
Switching mode regulator, pin compatible with LM78xx. Output voltage tolerance: typical/max. ±2.0/±3.0%. Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage range, output voltage, output current, efficiency at min./max. input voltage): R-78B9.0-1.0, 12 to 32 V, 9.0 V, 1.0 A, 95/93 %
Technical specifications
| Output voltage DC | 9 VDC | |
| Output current | 1 A | |

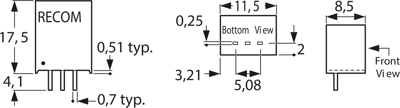

| Width | 8.5 mm | |
| Height | 17.5 mm | |
| Power | 9 W | |
| Length | 11.5 mm | |
| Design | SIP3 | |
| Number of outputs | 1 | |
| efficiency | 95 % | |
| Input voltage AC | 12-32 VDC |
Download
Logistics
| Customs tariff number | 85044095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
