R-78B3.3-2.0 | RECOM

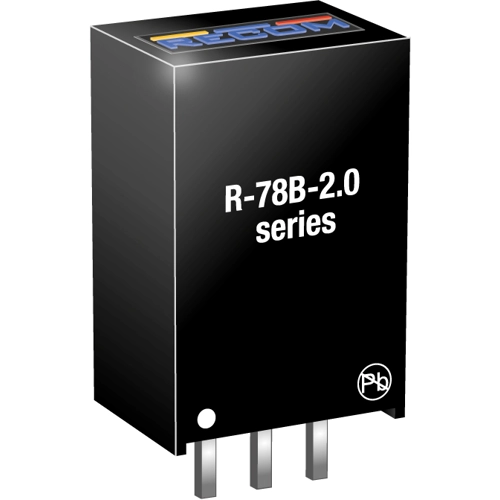

DC converter, 4.75-32 VDC, 6.6 W, 1 output, 3.3 VDC, 92 % efficiency, R-78B3.3-2.0
/500x500/dc-converter-4-75-32-vdc-6-6-w-1-output-3-3-vdc-92-efficiency-r-78b3-3-2-0.webp)
Unit Price (€ / pc.)
13.1376 € *
Available: 84 pcs.
Total Price:
13.14 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1376 €
10 pcs.
12.5426 €
50 pcs.
11.9952 €
100 pcs.
11.6501 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converter, R-78B3.3-2.0, RECOM
The R-78B3.3-2.0 high efficiency switching regulator is ideally suited to replace a 78xx linear regulator and is pin compatible. The efficiency of up to 96% means that very little energy is wasted as heat. Full power is available over a temperature range of -40 °C up to 70 °C without the need for heatsinks with their additional space and mounting costs. A high input voltage of up to 32 VDC, output voltages from 1.2 V up to 15 V, low ripple and noise figures, and a short circuit input current of typically only 50 mA round off the specifications of this versatile converter.
Features
- Continuous short circuit protection
- Positive to negative
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 2000 mA | |
| Output voltage DC | 3.3 VDC | |
| Input voltage AC | 4.75-32 VDC | |
| Power | 6.6 W | |
| efficiency | 92 % | |
| Design | through hole | |
| Length | 11.5 mm | |
| Width | 8.5 mm | |
| Height | 17.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
