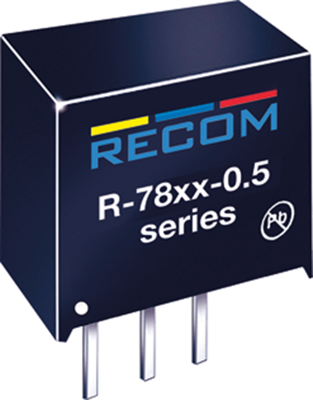

R-789.0-0.5 | RECOM
DC converter, 11-32 VDC, 5 W, 1 output, 9 VDC, 96 % efficiency, R-789.0-0.5
Order No.: 33C416
EAN: 4099891335106
MPN:
R-789.0-0.5
80099075
Unit Price (€ / pc.)
10.353 € *
Standard delivery time from the manufacturer is: 6 Weeks
DC/DC converters, type Recom R-78.
Switching mode regulator, pin compatible with LM78xx. Output voltage tolerance: typical/max. ±2.0/±3.0%. Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage range, output voltage, output current, efficiency at min./max. input voltage): R-789.0-0.5, 11 to 32 V, 9.0 V, 0.5 A, 96/92 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 500 mA | |
| Design | SIP3 | |
| Power | 5 W | |
| Width | 7.5 mm | |
| Height | 10.2 mm | |
| efficiency | 96 % | |
| Output voltage DC | 9 VDC | |
| Length | 11.5 mm | |
| Input voltage AC | 11-32 VDC | |
| Number of outputs | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
| Original Packaging | Bar with 42 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
