R-615.0P | RECOM
DC converter, 9-32 VDC, 5 W, 1 output, 5 VDC, 92 % efficiency, R-615.0P
Unit Price (€ / pc.)
23.4311 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
23.43 € *
Price list
Quantity
Price per unit*
1 pcs.
23.4311 €
5 pcs.
21.3605 €
15 pcs.
20.7298 €
*incl. VAT plus shipping costs
Subject to prior sale

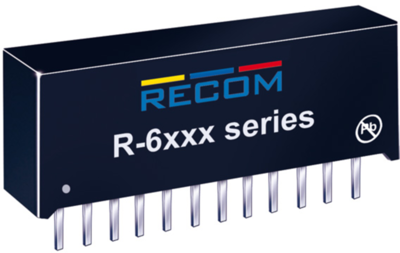

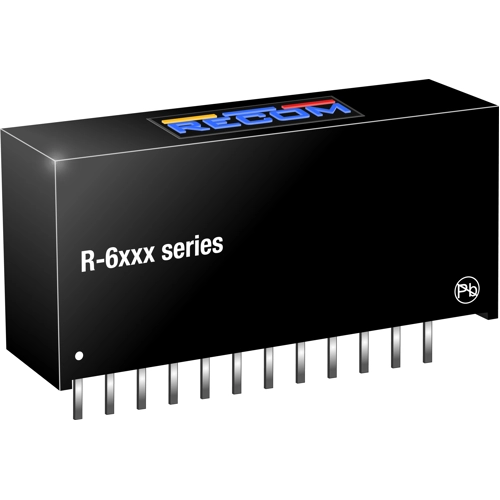

Switching Regulator, R-615.0P, RECOM
The R-6xxx series is a high performance 1.5V to 15V (18V), 1.1 Amp to 2Amp, 12-Pin SIP (single in-line package) switching regulator. The Synchronous rectification yields excellent efficiencies up to 97%. Short circuit protection reduces the short circuit input current to under 50mA.
Features
- Non-isolated
- Adjustable output voltage
- 1-2AMP adjustable positive step down integrated switching regulator
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1 A | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 9-32 VDC | |
| Power | 5 W | |
| efficiency | 92 % | |
| Design | SIP12 | |
| Length | 32.2 mm | |
| Width | 9.1 mm | |
| Height | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
