RAC150-24SG/ENC | RECOM
AC/DC converter, 24 VDC, 6.25 A, 120 W, RAC150-24SG/ENC
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
78.0402 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
78.04 € *
Price list
Quantity
Price per unit*
1 pcs.
78.0402 €
2 pcs.
65.7237 €
5 pcs.
64.0220 €
*incl. VAT plus shipping costs
Subject to prior sale

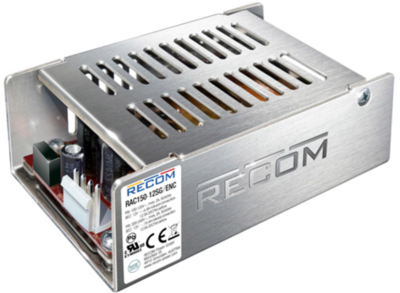

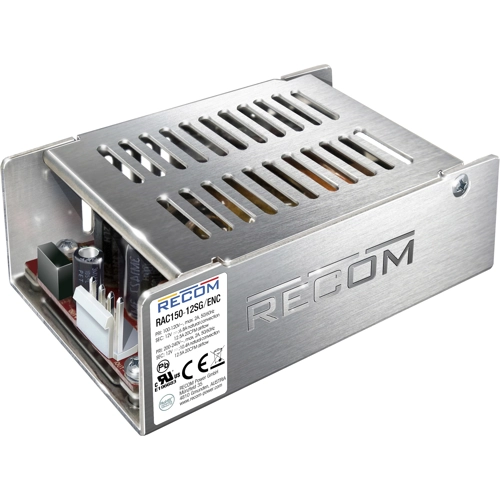

AC/DC Converter, RAC150-24SG/ENC, RECOM
The RAC150 series are low cost 150 Watt AC/DC power supplies in a standard 2 "x4" footprint with a universal input range of 90-264VAC for worldwide use. They are designed to deliver up to 125 watts of power with natural air convection for use in tight, space-critical enclosures with low available airflow. UL and CE marks with CB reports include the new safety standard. The RAC150 series offers strictly regulated 12V, 24V and 48VDC outputs with 3kVAC isolation and Class B EMC certification and comes with a three-year warranty.
Features
- Universal input 90-264 VAC
- Efficiency 91
- Short circuit and overvoltage protected
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 6.25 A | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 90-264 VAC | |
| Power | 120 W | |
| efficiency | 91 % | |
| Length | 105 mm | |
| Width | 62 mm | |
| Height | 35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
