RACPRO1-RD40 | RECOM
Redundancy module, 135 x 43 x 140.4 mm, for power supply, RACPRO1-RD40
Backup module, RACPRO1-RD40, RECOM

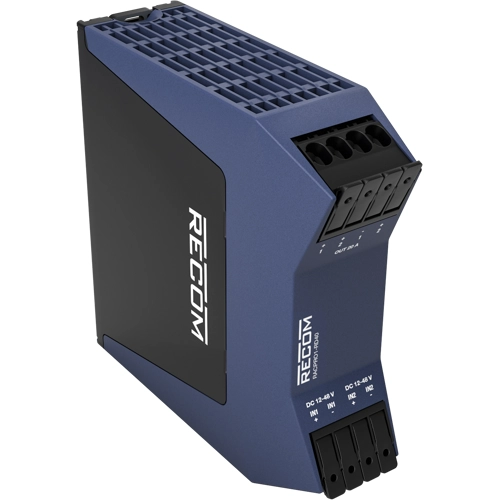

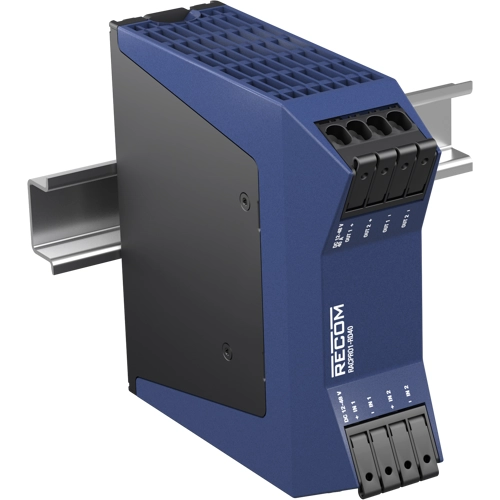

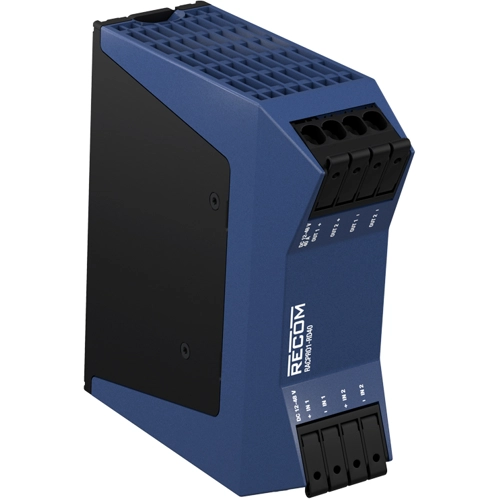

The light and slim RACPRO1-RD40 is a high reliability n+1 DIN Rail redundancy diode module in extremely compact dimensions of 135 x 140.4mm with a width of only 43mm. The wide DC input range of 9V to 56V allows connection of a power supply with 12V, 24V, or 48V output in n+1 redundancy operation up to 20A, or up to 40A output in sharing or parallel operation. With highly efficient MOSFET technology, the module is specially designed for demanding applications in the harsh industrial automation field with only 140mV voltage drop. This unit will deliver up to 40A over the full -40°C to +70°C ambient temperature range with only convection cooling and a maximum power loss of 5W typ. The unique and innovative modern design with 25° push-in connectors allows easy tool-less installation or replacement.
Features
- Fast tool-less mounting and demounting
- Minimum Power Loss 5W typ
- Reduced no load power consumption <200mW
| Filter | Property | Value |
|---|---|---|
| Product type | redundancy module | |
| Version | 135 x 43 x 140.4 mm | |
| Suitable for | power supply |
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | RS |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
