REFIN2U-S90/24/CL | RECOM
DC converter, 85-276 V, 91.2 W, 1 output, 24 VDC, REFIN2U-S90/24/CL
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
47.4810 € *
Standard delivery time from the manufacturer is: 7 Weeks

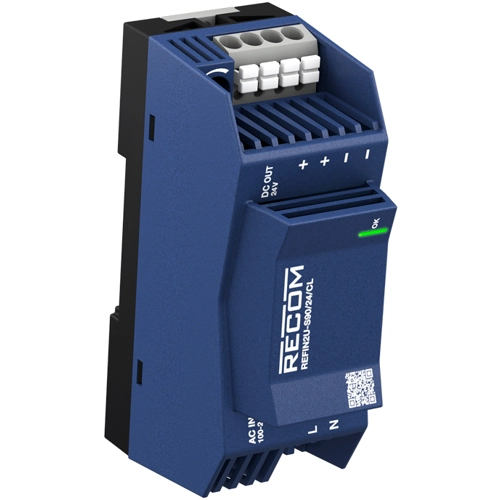

AC/DC Converter, REFIN2U-S90/24/CL, RECOM
With a width of 2U and dimensions of 36 x 94 x 55 mm, the new REFIN2U-S90/24/CL supports power requirements of 90 watts. Spring-loaded push-in terminals for solid or stranded wires enable tool-free connections without ferrules. Rear mounting flaps allow direct mounting to the back of a wall in any orientation, even without a DIN rail.
Features
- Boost power up to 135W for 5s
- Push-In Connections
- CV/CC Constant voltage / current limited
- Audible noise suppression
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 3800 mA | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 85-276 V | |
| Power | 91.2 W | |
| efficiency | 93.6 % | |
| Design | 2U step-shape | |
| Isolation voltage | 3 kV | |
| Length | 94.1 mm | |
| Width | 36.2 mm | |
| Height | 58.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
