RACM15E-05SK/OF | RECOM
AC/DC converter, 80-275 VAC, 15 W, 1 output, 5 VDC, RACM15E-05SK/OF
Unit Price (€ / pc.)
10.4720 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
10.47 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4720 €
10 pcs.
10.0079 €
50 pcs.
9.1868 €
100 pcs.
8.5918 €
*incl. VAT plus shipping costs
Subject to prior sale

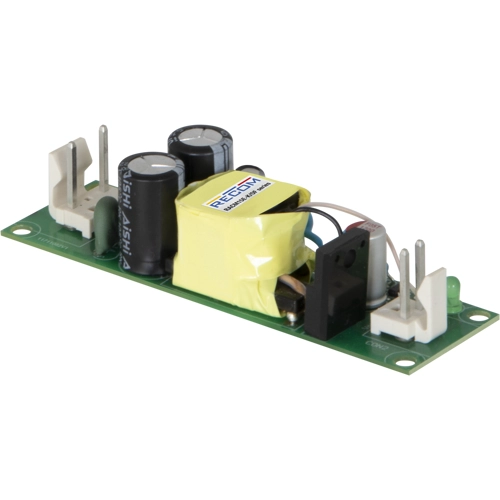

AC/DC converter, RACM15E-05SK/OF, RECOM
The RACM15E-05SK/OF the cost-effective chameleon among AC/DC power supplies, adheres to different connection and mounting criteria such as open card placement for connection via pre-assembled harness, or IP20-protected enclosure with push-in terminals for direct fixation to mounting plates, as well as for snapping onto DIN rails with 1.5U slotsize. CV/CC regulated output voltages from 3.3 to 30Vdc with overcurrent limited power of 15 Watt are provided under still air convection at -40° to 50°C ambient temperature. International certifications to medical; household; industrial and safety transformer standards ensure simplified integration into applications for use up to 5000m altitude or 3000m at OVC III overvoltage rating requirements.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 3000 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 80-275 VAC | |
| Power | 15 W | |
| efficiency | 82 % | |
| Design | chassis mounting | |
| Isolation voltage | 4.2 kV | |
| Length | 80 mm | |
| Width | 23.8 mm | |
| Height | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
