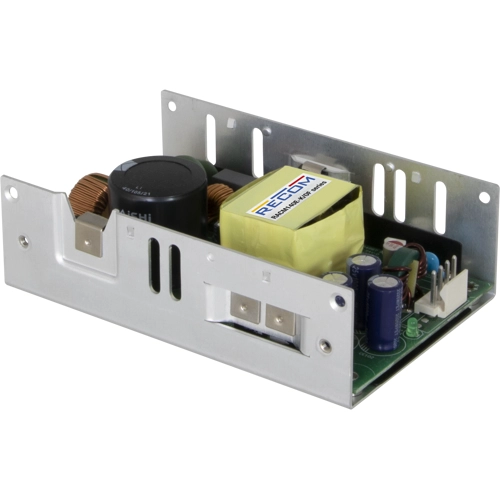

AC/DC converter, RACM140E-24SK/OF, RECOM
Cost efficiency and reliability characterize the RACM140E-24SK/OF AC/DC power supply, delivering a continuous output of 140 watts and a boost power of 210 watts for dynamic load surges lasting up to 10 seconds. Mounting options include industry-standard 3”x5” screw points or robust tabs, allowing direct installation from above onto base plates. Connection to be facilitated through a wiring harness and pin headers, or via optional tool-less ‘push-in’ terminals. Certified for household and industrial standards with overvoltage category OVC III respectively OVC II for operation up to 5000 meters altitude, the module additionally holds UL certifications with 2MOPP and complies with BF requirements for medical use. To simplify system integration, the module offers ample margin to EN55032 ‘B’ limits and increased ‘Surge and Burst’ immunity. Covering a wide range of DC output requirements, output voltages can be adjusted by ±20% on average, using a trim potentiometer.
Features
- Cost-efficient and reliable Design
- 210W boost power up to 10s
