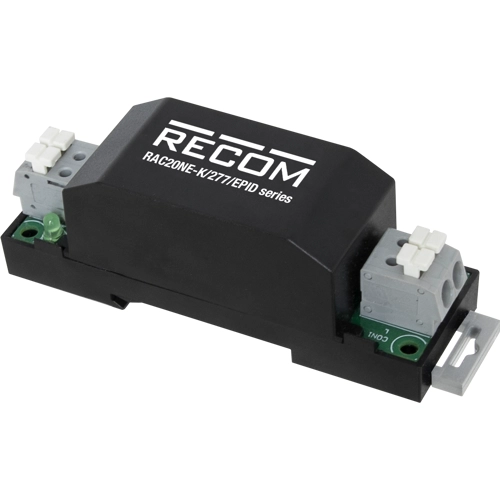

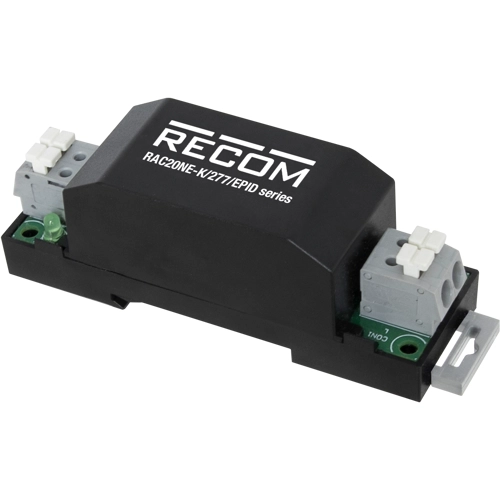

DC/DC converter, RAC20NE-12SK/277/EPID, RECOM
The RAC20NE-12SK/277/EPID power supply is designed to flexibly fit into different mounting conditions, whether back panel mounting with screws or clipping onto DIN rails is required. In addition to the push-in terminals for tool-free connection of wire cross-sections up to 2.5mm², the module is IP40 ingress protected. Despite its extremely compact design, the class II unit offers increased resistance to surges up to 2kV L-N and 4kV to earth, as well as EMI-interference filters to meet EN55032 Class “B” requirements under floating or earth-coupling load conditions such as PELV. The unit is fully certified to safety standards UL/IEC/EN62368, IEC61347, IEC61558, and EN60335 with overvoltage category OVC III for worldwide nominal input voltages of 100-277VAC. It operates at full load from -40°C to 55°C, with power limitation up to 85°C.
Features
- 23 Watt Boost Power
- Optional CV/CC overcurrent limited
- IP40 ingress protected
